78mm Cellecta Hexatherm XCHiP Thermal Laminate Chipboard - XPS Insulation
78mm Cellecta Hexatherm XCHiP Thermal Laminate Chipboard - XPS Insulation
- Product Code: A1-1622
- Delivery Time: 2 - 4 days
- Brand: Cellecta (Tech. support: 01634296677)
- Model: 600x2400mm - 1.44m2
- Weight: 19.87kg
Our ratings on 08-11-2024:
4.8 out of 5
78mm Cellecta Hexatherm XCHiP Thermal Laminate Chipboard - XPS Insulation
Width: 600mm
Length: 2400mm
Density: 177kg/m3
Weight/m2: 13.8kg
Weight: 19.87kg
Thermal Conductivity: 0.033W/mK
R-Value: 2.36m2K/W
Compressive Strength: 300kPa

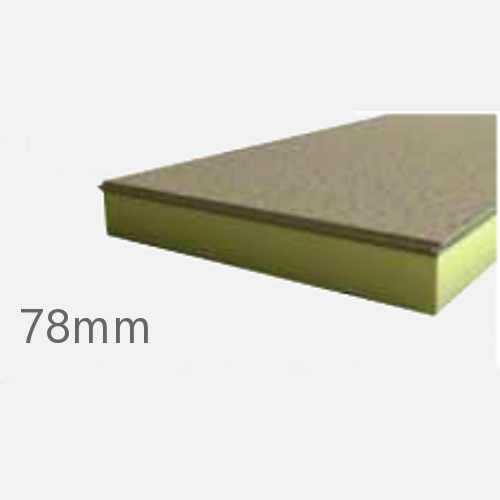

78mm Cellecta XCHiP is a high performance insulation board with a 18mm chipboard laminate facing. Cellecta XCHiP combines the benefits of HEXATHERM high performance thermal insulation with a P5 moisture resistant, tongue and groove chipboard to produce a high compressive strength, interlocking floor board.
CHARACTERISTICS
- High compressive strength,
- Interlocking, moisture resistant chipboard facing,
- Excellent life-long thermal performance,
- Quick to install,
- Able to withstand heavy point loads,
- Closed cell structure,
- Suitable for areas in close proximity to water,
- Blown with reclaimed CO2,
- 100% Recyclable,
- Super low U-values achievable
APPLICATION
Cellecta Hexatherm XCHiP is used for basements, above ground bearing concrete floor slabs, and on suspended beam and block floors.
CERTIFICATION
Manufactured in accordance with BS EN 13374 and tested to BS EN 12267
XChip_Suspended_Beam_and_Block_Floor_Thermal_Insulation_Below_Screed.pdf
