45mm Cellecta Deckfon Quattro - Direct to Joist Acoustic Overlay Board

45mm Cellecta Deckfon Quattro - Direct to Joist Acoustic Overlay Board
Guide Price
45mm Cellecta Deckfon Quattro - Direct to Joist Acoustic Overlay Board
Guide Price: £60.19 (£72.23 inc VAT)
Price per m2: £41.80/m2 (£50.16 inc VAT)
  • Product Code: A1-680
  • Delivery Time: 3 - 5 days
  • Brand: Cellecta
    • (Tech. support: 01634296677)
  • Model: 600x2400mm - 1.44m2
  • Weight: 28.80kg
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Add to Quote
Compare
Checkout
Show other thicknesses

To GET BEST PRICE for this product only fill below:

Send for Quotation
Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

45mm Cellecta Deckfon Quattro - Direct to Joist Acoustic Overlay Board

Thickness: 45mm
Resilient layer thickness: 15mm
Width: 600mm
Length: 2400mm
Coverage: 1.44m2
Density: 444.4kg/m3
Weight/m2: 20kg
Weight: 28.8kg
Impact Sound Insulation: 58dB
Airbourne sound insulation: 55dB

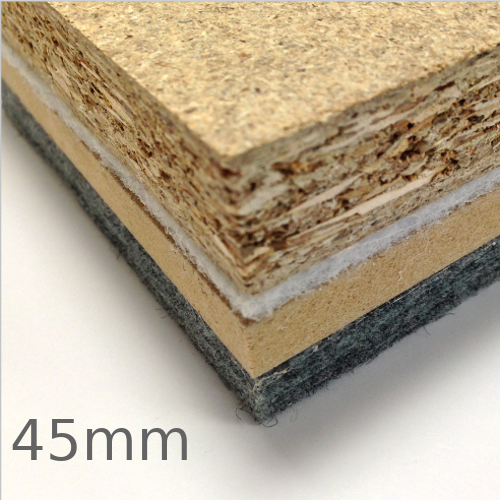

45mm Cellecta Deckfon Quattro is an acoustic overlay board designed for conversion and refurbishment projects, laid directly on timber floors and when the ceiling is to be retained. Being a composite floor system, the product consists of four layers, including a decoupling acoustic fleece, 18 mm thick P5 chipboard, high density sheet and a 15 mm resilient open-cell layer, made from recyclable flexible polyurethane with low resonance and bonded to a moisture resistant floor board, for sound transmission reduction.

CHARACTERISTICS
  • Excellent acoustic performance
  • Very quick and easy installation
  • Includes a moisture resistant floorboard
  • Tongue and groove edge detail
  • Low resonance, open-cell resilient layer
APPLICATION

45mm Cellecta Deckfon Quattro is applicable in refurbishment projects, for improving the acoustic performance of timber floors, when ceiling is to be retained.

CERTIFICATION
  • Test data was conducted in a UKAS accredited laboratory in accordance with Approved Document E: Annex B: Procedures for sound insulation testing.
  • Airborne results were tested in accordance with BSENISO140-3:1995
  • Impact results were tested in accordance with BSEN ISO140-6:1998
