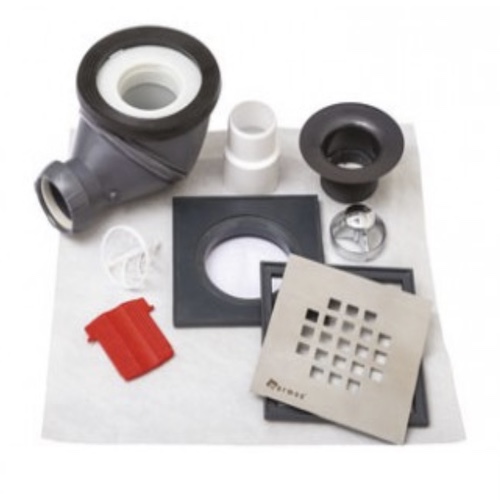

Marmox Minilay Point Drain Kit with a 360 Swivel Waste

Marmox Minilay Point Drain Kit with a 360 Swivel Waste transforms any concrete floor into a tileable wetroom floor. Marmox Minilay Point drain comes set into a rigid board with a waterproof fleece, allowing for the shower floor to be continued with screed, providing a seamless waterproof junction. The Point Drain kits come supplied with a standard 120mm x 120mm free flow grate. Additionally, you can choose the Marmox Circles grate. The 360 Swivel Waste can be rotated to accommodate horizontal or vertical connection of waste or anywhere in between. Marmox The small board provides a solid surface immediately around the drain from which the slope of the shower floor can be continued with the screed.

The depth of the waste from the board is 86mm if the waste is mounted horizontally and 126mm when the waste is mounted vertically.

• Height of the Waste - 83mm
• Connection - 43mm
• Drainage Performance - 30 l/m

• Create a hole in the concrete floor to form the sloping area.
• Before fitting the Minilay, line the area with the waterproof fleece running 100mm up the wall past the finished level of the floor.
• Apply the fleece back to the substrate with a thin bed of flexible tile adhesive.
• Where the drain pipe intersects the waterproof fleece, seal with Marmox MSP-360.
• The Minilay should be positioned at a level where the upper board surface is lower than the level of the main floor surrounding it.
• The point drain version and the channel drain version for use with the slim gully should be sat flat and firmly on the floor (on top of the fleece).
• Solvent weld the gully to a BS40mm pipe.

• Before continuing, check that water adequately drains through the unit.
• Mix up a standard screed (1 part cement:4 parts sand) and pack this into the void, using a trowel to create a slope from the edge of the board to the edge of the surrounding floor.
• When fully cured, fix the waterproof fleece overlaps of the Minilay to the sloping screed area using some tile adhesive and continue to tile the area starting from the drain and moving out to the perimeter walls.
