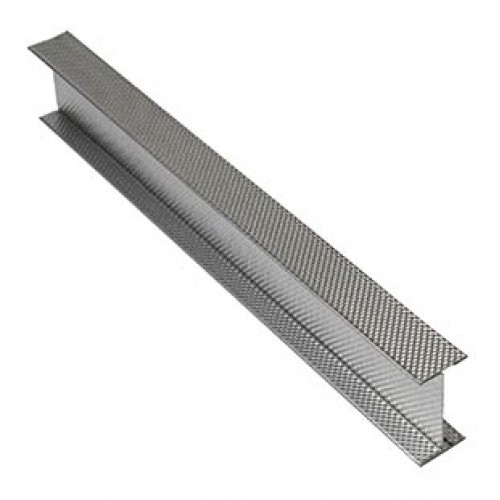

British Gypsum Gypframe 70 I 50 I Stud 4.2 m (pack of 10)

British Gypsum Gypframe 70 I 50 I Stud 4.2 m (pack of 10)
British Gypsum Gypframe 70 I 50 I Stud 4.2 m (pack of 10)
British Gypsum Gypframe 70 I 50 I Stud 4.2 m (pack of 10)
British Gypsum Gypframe 70 I 50 I Stud 4.2 m (pack of 10)
British Gypsum Gypframe 70 I 50 I Stud 4.2 m (pack of 10)
Price: £233.36 (£280.03 inc VAT)
3 or more £227.44 (£272.93 inc VAT)
4 or more £221.51 (£265.81 inc VAT)
5 or more £217.54 (£261.05 inc VAT)
  • Product Code: A1-806
  • Delivery Time: 2 - 3 working days
  • Brand: British Gypsum
  • (Tech. support: 01159456123)
  • Model: 70 I 50 'I' Stud - 4.2 m
  • Weight: 34.86kg
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Show other lengths

British Gypsum Gypframe 70 I 50 'I' Stud 4.2 m (pack of 10)

Width: 70mm
Length: 4200mm
Weight: 34.86kg

British Gypsum Gypframe 70 I 50 4.2 m 'I' studs provide additional impact resistance due to the improved strength, unlike any other available Gypframe studs. They are usually used in systems with paramount board fixing strength, allowing increased partition height, but retaining the same partition width. Services can be easily routed through the partition due to the spaced structural apertures.

The studs are used in various systems, including:

  • GypWall CLASSIC is a lightweight system which provides a 30-120 minutes of fire resistance, has substantial sound insulation performance, also protecting the metal framework from warping, rotting and twisting. The system can be have a number of different applications only if the position of the fixings and the installation are pre-planned and determined;
  • GypWall CURVE is a flexible system that is not only designed for curved walls and linings but can also provide an aesthetic and well designed concept. It reauires no curved timber templates, providing a minimum radii of 600mm, applicable to communal areas or reception, in particular;
  • GypWall ROBUST is available in there stud options (70mm, 92mm and 146mm), meeting BS 5234 requirements, great sound insulation and 60 minutes of fire resistance, and all in a single layer. Due to the durability it provides, it can be applied to almost any commercial building. Some constructions may include installing control joints in the partition, coinciding with movement joists, all in order of relieving the construction of stresses caused by contraction and expansion.
APPLICATION

Gypframe 70 I 50 4.2 m 'I' studs are particularly applicable in systems with paramount board fixing strength.

CERTIFICATION

The product is in compliance with the:

  • British Standard BS 7364
  • European Standard EN 14195
  • American Standard ASTM C645
