British Gypsum Gypframe 48 I 50 I Stud 3 m (pack of 10)

British Gypsum Gypframe 48 I 50 I Stud 3 m (pack of 10)
British Gypsum Gypframe 48 I 50 I Stud 3 m (pack of 10)
British Gypsum Gypframe 48 I 50 I Stud 3 m (pack of 10)
British Gypsum Gypframe 48 I 50 I Stud 3 m (pack of 10)
British Gypsum Gypframe 48 I 50 I Stud 3 m (pack of 10)
Price: £163.12 (£195.74 inc VAT)
3 or more £160.37 (£192.44 inc VAT)
4 or more £156.31 (£187.57 inc VAT)
5 or more £152.36 (£182.83 inc VAT)
  • Product Code: A1-797
  • Delivery Time: 2 - 3 working days
  • Brand: British Gypsum
  • (Tech. support: 01159456123)
  • Model: 48 I 50 'I' Stud - 3 m
  • Weight: 21.00kg
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Show other lengths

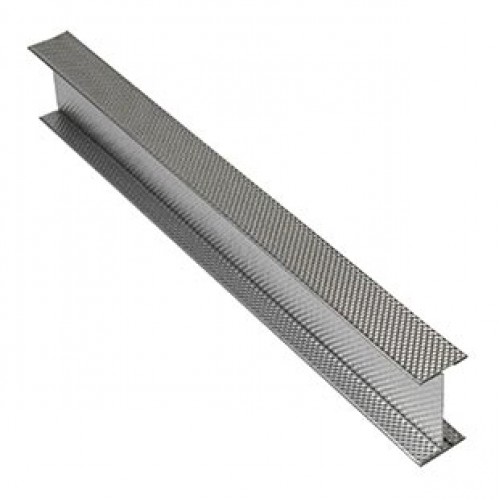

British Gypsum Gypframe 48 I 50 'I' Stud 3 m (pack of 10)

Width: 48mm
Length: 3000mm
Weight: 21kg

British Gypsum Gypframe 48 I 50 3 m 'I' studs provide additional impact resistance due to the improved strength, unlike any other available Gypframe studs. They are usually used in systems with paramount board fixing strength, allowing increased partition height, but retaining the same partition width. Services can be easily routed through the partition due to the spaced structural apertures.

The studs are used in various systems, including:

  • GypLyner IWL, providing fire protection and fire resistance, used for upgrading both thermal and sound performance of masonry walls, designed to correspond to BS 5234 standards. The system can increase the sound and thermal insulation of both new or existing walls, only if the elements are well fitted to the background, junctions properly sealed and water penetration and damp issues taken care of by applying recommended measures;
  • GypWall QUIET IWL is in compliance with the Robust details constructions, meaning that there is no pre-completed testing required, also designed to meet BS 5234 requirements, used to accommodate services between the twin stud frameworks.
APPLICATION

Gypframe 48 I 50 3 m 'I' studs are particularly applicable in systems with paramount board fixing strength.

CERTIFICATION

The product is in compliance with the:

  • British Standard BS 7364
  • European Standard EN 14195
  • American Standard ASTM C645
