British Gypsum Gypframe 70 S 60 C Stud 3.6 m (pack of 10)

British Gypsum Gypframe 70 S 60 C Stud 3.6 m (pack of 10)
British Gypsum Gypframe 70 S 60 C Stud 3.6 m (pack of 10)
British Gypsum Gypframe 70 S 60 C Stud 3.6 m (pack of 10)
British Gypsum Gypframe 70 S 60 C Stud 3.6 m (pack of 10)
British Gypsum Gypframe 70 S 60 C Stud 3.6 m (pack of 10)
Price: £206.29 (£247.55 inc VAT)
3 or more £201.05 (£241.26 inc VAT)
4 or more £195.80 (£234.96 inc VAT)
5 or more £192.18 (£230.62 inc VAT)
  • Product Code: A1-775
  • Delivery Time: 2 - 3 working days
  • Brand: British Gypsum
  • (Tech. support: 01159456123)
  • Model and Size: 70 S 60 'C' Stud - 3.6 m
  • Weight: 20.10kg
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Show other lengths

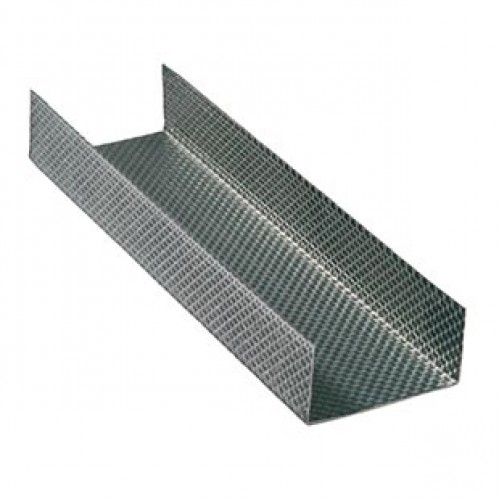

British Gypsum Gypframe 70 S 60 'C' Stud 3.6 m (pack of 10)

Width: 70mm
Length: 3600mm
Weight: 20.1kg


British Gypsum Gypframe 70 S 60 3.6 m 'C' studs are especially designed for smooth board alignment and increased strength. Their spaced structural apertures make the services routing much easier and their diversity makes them applicable to different height, strength, acoustic insulation and resistance requirements. The studs are used for wall framing vertical support in various systems, including:

  • GypWall CURVE is a flexible system that is not only designed for curved walls and linings but can also provide an aesthetic and well designed concept. It reauires no curved timber templates, providing a minimum radii of 600mm, applicable to communal areas or reception, in particular;
  • GypWall EXTREME is a hybrid system consisting of Gyproc plasterboards, Gypframe metal products and Rigidur H fibre reinforced gypsum boards providing great sound insulation performance, great resistance and durability but also highly cost-effective due to the reduced maintenance cycle costs. The systems characteristics make it applicable to traffic corridors and student accommodations. It is recommended for control joints to be installed in order of reducing the construction stresses caused by contraction and expansion.
  • GypWall ROBUST is available in there stud options (70mm, 92mm and 146mm), meeting BS 5234 requirements, great sound insulation and 60 minutes of fire resistance, and all in a single layer. Due to the durability it provides, it can be applied to almost any commercial building. Some constructions may include installing control joints in the partition, coinciding with movement joists, all in order of relieving the construction of stresses caused by contraction and expansion
APPLICATION

Gypframe 70 S 60 3.6 m 'C' studs are used as the wall framing vertical support.

CERTIFICATION

The product is in compliance with the:

  • British Standard BS 7364
  • European Standard EN 14195
  • American Standard ASTM C645
