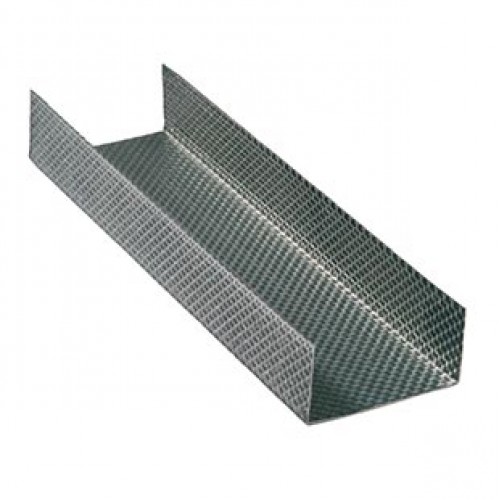

British Gypsum Gypframe 70 S 50 'C' Stud 2.7 m

British Gypsum Gypframe 70 S 50 2.7 m 'C' studs are especially designed for smooth board alignment and increased strength. Their spaced structural apertures make the services routing much easier and their diversity makes them applicable to different height, strength, acoustic insulation and resistance requirements. The studs are used for wall framing vertical support in various systems, including:

• FireWall provides up to 240 minutes of fire resistance, while requiring minimal wall thickness, especially designed to meet the requirements of insurance companies in the words of fire protection, why it is especially applicable to warehouses, plant rooms and data storages. Special care should be given to any insulation system installed in order of preventing it to anyhow affect the performance of the system, which also goes for any openings is the wall which are generally not required with the FireWall system. Finally, it is advisable that a damp proof membranes are installed if dealing with a new concrete screeded floor;
• GypLyner IWL, providing fire protection and fire resistance, used for upgrading both thermal and sound performance of masonry walls, designed to correspond to BS 5234 standards. The system can increase the sound and thermal insulation of both new or existing walls, only if the elements are well fitted to the background, junctions properly sealed and water penetration and damp issues taken care of by applying recommended measures;
• GypWall CLASSIC is a lightweight system which provides a 30-120 minutes of fire resistance, has substantial sound insulation performance, also protecting the metal framework from warping, rotting and twisting. The system can be have a number of different applications only if the position of the fixings and the installation are pre-planed and determined;
• GypWall CURVE is a flexible system that is not only designed for curved walls and linings but can also provide an aesthetic and well designed concept. It reauires no curved timber templates, providing a minimum radii of 600mm, applicable to communal areas or reception, in particular;
• GypWall QUIET IWL is in compliance with the Robust details constructions, meaning that there is no pre-completed testing required, also designed to meet BS 5234 requirements, used to accommodate services between the twin stud frameworks;
• GypWall QUIET SF whose considerable acoustic performance makes it applicable to separating walls (between apartments, for example), also providing fire resistance of 60-120 minutes. For optimal acoustic performance, it is recommended that all air paths are properly sealed;
• GypWall STAGGERED has a wide application in both commercial and residential buildings such as hospitals, schools, offices, shops etc all due to increased sound insulation properties at a minimal partition width, in conformity with the BS 5234 and providing up to 90 minutes of fire resistance. When installing, it is important that the linings are not separated by a bridge created from the fixtures and services.

Gypframe 70 S 50 2.7 m 'C' studs are used as the wall framing vertical support.

The product is in compliance with the:

• British Standard BS 7364
• European Standard EN 14195
• American Standard ASTM C645
