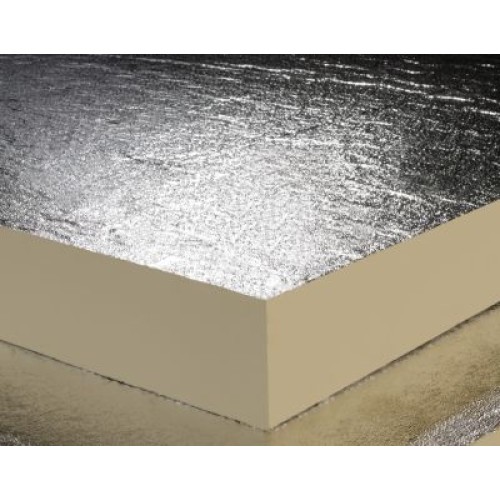

85mm Celotex CG5000 Partial Fill Cavity Wall Board pack of 7 - pallet of 16 packs

85mm Celotex CG5000 Partial Fill Cavity Wall Board pack of 7 - pallet of 16 packs
85mm Celotex CG5000 Partial Fill Cavity Wall Board pack of 7 - pallet of 16 packs
  • Product Code: A1-928
  • Delivery Time: 3 - 5 days
  • Due to nationwide shortage of PIR insulation lead time may be longer for this product.
  • Brand: Celotex
  • (Tech. support: 01473820850)
  • Model: 450x1200mm - 60.48m2
  • Weight: 129.29kg
Product discontinued. Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

85mm Celotex CG5000 Partial Fill Cavity Wall Board pack of 7 - pallet of 16 packs

Thickness: 85mm
Width: 450mm
Length: 1200mm
Pallet Coverage: 60.48m2
Weight/m2: 2.96kg
Thermal Conductivity: 0.021W/mK
R-Value: 4m2K/W
Compressive Strength: 120kPa
Vapour resistivity: 150

Celotex CG5085 is especially designed for partial fill cavity wall insulation, offering great thermal performance due to substantial R and U values, with decreased board thickness and lower emissivity values due to the aluminum foil facings on both sides of the PIR core. This set of products presents and innovative solution in cavity wall insulation, offering considerable fire resistance, achieving an A+ rating and a Class 0 fire performance throughout the entire construction. The boards are made from resilient and durable polyisocyanurate treated with zero ODP and low GDP blowing agents, all making them highly environmentally friendly. It is advised not to install the boards at low temperatures of 4 C or lower. When adding the boards to the inner side of the wall, the wall ties must be able to hold the insulation in place and the boards secured with at least three ties.

APPLICATION

Partial fill cavity walls applications.

CHARACTERISTICS
  • Especially designed to meet the requirements of partial fill cavity walls applications,
  • Applicable to both existing and new buildings,
  • Great thermal performance, with lambda values of only 0.021 W/mK,
  • Offers substantial fire resistance,
  • Highly environmentally friendly,
  • Zero ODP and low GDP values.
CERTIFICATION
  • In accordance with BS 476;
  • BBA certified, number 94/3080;
  • Manufactured in accordance with quality management systems BS EN ISO 9001:2000.

Once purchased this product is non-returnable.
