72.5mm Xtratherm Safe-R Thermal Liner SR/TB (60mm Phenolic Core and 12.5mm Plasterboard) - Dot and Dab (pack of 5)
Guide Price
72.5mm Xtratherm Safe-R Thermal Liner SR/TB (60mm Phenolic Core and 12.5mm Plasterboard) - Dot and Dab (pack of 5)
Guide Price: £419.23 (£503.08 inc VAT)
Price per m2: £29.11/m2 (£34.94 inc VAT)
2 or more £405.76 (£486.91 inc VAT)
4 or more £392.22 (£470.66 inc VAT)
5 or more £378.66 (£454.39 inc VAT)
- Product Code: A1-2229
- Delivery Time: 2 - 3 working days
- Brand: Xtratherm (Tech. support: 03712221055)
- Model: 2400x1200 - 14.40m2
- Weight: 154.08kg
Due to nationwide shortage of Phenolic and PIR insulation lead time may be longer for this product.
Our ratings on 16-12-2024:
4.8 out of 5
72.5mm Xtratherm Safe-R Thermal Liner SR/TB (60mm Phenolic Core + 12.5mm Plasterboard) - Dot & Dab (pack of 5)
Width: 1200mm
Length: 2400mm
Pack Coverage: 14.4m2
Pack Quantity: 5
Weight/m2: 10.7kg
Weight: 154.08kg
Thermal Conductivity: 0.020W/mK
R-Value: 2.86m2K/W
Compressive Strength: 125kPa

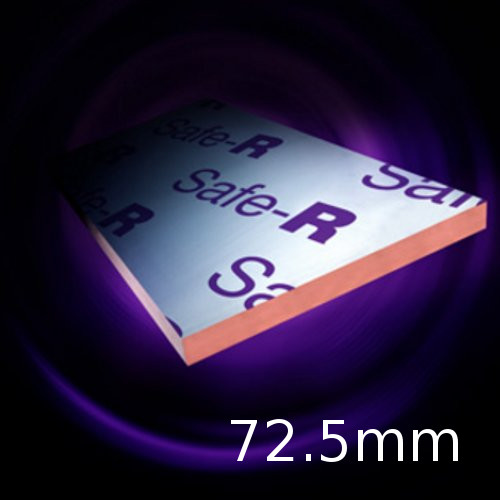

72.5mm Xtratherm Safe-R Thermal Liner SR/TB is a composite insulated panel of Xtratherm 60mm Phenolic core with a composite tissue facing bonded to a 12.5mm tapered edge plasterboard for internal applications,fixed with dot & dab adhesive bonding. Xtratherm Safe-R Thermal Liner SR/TB is designed to provide high levels of thermal insulation and dry lining in one operation for masonry walls. The Safe-R Thermal Liner SR/TB board achieves a resistance greater than 100 MN.s/g. Improved vapour resistivity when required, can be provided with two coats of Drywall Sealer. Safe-R Thermal Liner SR/TB is faced with low emissivity aluminium/glass tissue facings, and has a thermal conductivity as low as 0.020W/mK. Max installation height for this system is 3m.
Note: The plasterboard can be square edge, 9.5mm thick, fire or moisture resistant or soundproof, can be priced on request.
CHARACTERISTICS
- Superior performance phenolic foam,
- Thermal conductivity as low as 0.020 W/mK,
- Effective thermal and fire performance,
- Achieves a resistance greater than 100 MN.s/g,
- Can be readily cut using a sharp knife or fine toothed saw,
- Low smoke obscuration,
- Low risk fire rating - Class 0,
- HCFC/CFC Free,
- Zero ODP,
- Rot proof and will remain effective for the life span of the building,
APPLICATION
- Internal wall drylining for new build or refurbishment
INSTALLATION
- Align the SR/TB Thermal Liner squarely on wall.
- Allow a 15mm expansion joint at the top and bottom of the panel, and fill with foam filler.
- Mark the position of the panel on the wall. Apply adhesive dabs to the wall in accordance with BS8212:1986 & BS 800: Part 8: 1994.
- Vertical dabs @ 300mm centres 25mm in from edge. Dabs 50-75mm wide approx 25mm deep to allow for tamping. Total contact with boards area should be 20%.
- Lift the SR/TB Thermal Liner into position using wedges on the floor.
- Apply pressure to the board to level and embed in the adhesive.
- Insulation should be cut back to accommodate an adjoining panel at external corners.
- When the adhesive has dried, 3 fireproof mechanical fixings should be fixed through the centre of the board.
CERTIFICATION
Xtratherm Safe-R SR/TB is manufactured to EN ISO 13166 under Quality Systems approved to EN ISO 9001:2008 Quality Management, EN ISO 14001:2004 Environmental Management and BS OHSAS 18001 Health and Safety Management System.
Xtratherm-Safe-R-Dot&dab_SR-TB.pdf
