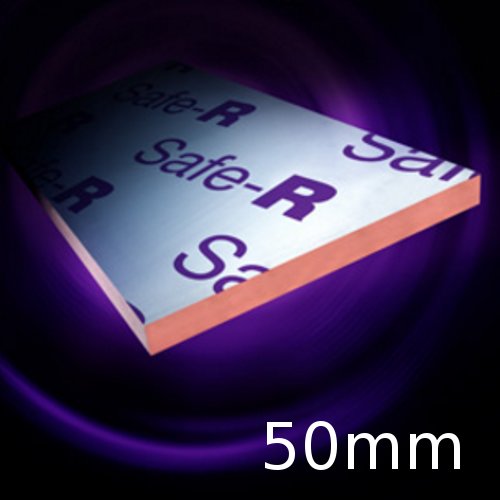

50mm Xtratherm Safe-R SR/FB Phenolic Insulation Framing Board (pack of 6)

50mm Xtratherm Safe-R SR/FB Phenolic Insulation Framing Board (pack of 6)
50mm Xtratherm Safe-R SR/FB Phenolic Insulation Framing Board (pack of 6)
  • Product Code: A1-4519
  • Delivery Time: 2 - 3 working days
  • Brand: Xtratherm
  • (Tech. support: 03712221055)
  • Model and Size: 2400x1200mm - 17.28m2
  • Weight: 38.88kg
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

50mm Xtratherm Safe-R SR/FB Phenolic Insulation Framing Board (pack of 6)

Width: 1200mm
Length: 2400mm
Pack Coverage: 17.28m2
Pack Quantity: 6
Density: 45kg/m3
Weight/m2: 2.25kg
Weight: 38.88kg
Thermal Conductivity: 0.020W/mK
R-Value: 2.5m2K/W
Compressive Strength: 125kPa
Fire Rating (Reaction to Fire): B(Class 0)

50mm Xtratherm Safe-R SR/FB Phenolic foam is a superior performance rigid insulation framing board with enhanced fire performance, consisting of a Class O phenolic foam core with negligible smoke obscuration. Safe-R SR is faced with low emissivity aluminium facings both sides, and has a thermal conductivity as low as 0.02W/mK. Safe-R Framing Board SR/FB is designed for use with steel or timber frame applications up to 18m in height

APPLICATION
  • Designed for use with steel or timber frame applications up to 18m in height


CHARACTERISTICS
  • Superior performance phenolic foam,
  • Provides the most efficient U-values with minimal thickness,
  • Effective thermal and fire performance,
  • Low smoke obscuration,
  • Low risk fire rating - Class 0,
  • For new build or refurbishment,
  • Rot proof and will remain effective for the life span of the building,
  • Can be readily cut using a sharp knife or fine toothed saw.
CERTIFICATION
  • Manufactured under a quality system approved to EN ISO 9001:2000 (Quality Management Systems)
  • Manufactured under an environmental system approved to EN ISO 14001:2004 (Environmental Management Systems)
  • Is manufactured without the use of CFC's or HCFC's and has Zero Ozone Depletion Potential
  • BBA approved
