Insulated Render Systems

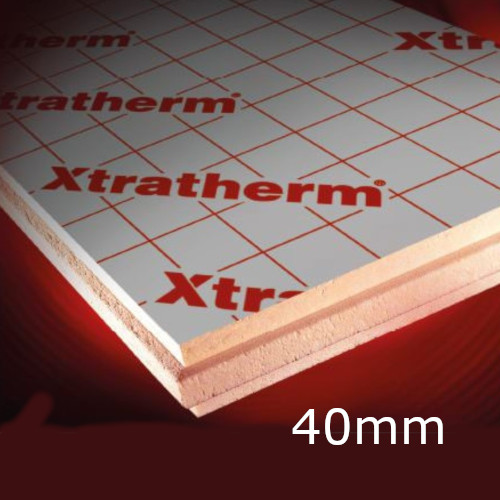

40mm Xtratherm Thin-R XT/CW Partial Fill Cavity Insulation (pack of 9)

40mm Xtratherm Thin-R XT/CW Partial Fill Cavity Insulation (pack of 9)
Guide Price
Rate this product
40mm Xtratherm Thin-R XT/CW Partial Fill Cavity Insulation (pack of 9)
Guide Price: £76.47 (£91.76 inc VAT)
Price per m2: £15.73/m2 (£18.88 inc VAT)
5 or more £75.23 (£90.28 inc VAT)
10 or more £73.97 (£88.76 inc VAT)
20 or more £72.09 (£86.51 inc VAT)
  • Product Code: A1-238
  • Delivery Time: 2 - 4 days
    • Due to nationwide shortage of PIR insulation lead time may be longer for this product.
  • Brand: Xtratherm (Tech. support: 03712221055)
  • Model: 1200x450mm - 4.86m2
  • Weight: 5.83kg
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Ask question about this product. For price use 'Add to Quote' button.
To GET BEST PRICE for this product only fill below:
Send for Quotation
Need a quote for more products? and continue browsing to find other materials needed.

40mm Xtratherm Thin-R XT/CW Partial Fill Cavity Insulation (pack of 9)

Thickness: 40mm
Width: 450mm
Length: 1200mm
Pack Coverage: 4.86m2
Density: 30kg/m3
Weight/m2: 1.2kg
Weight: 5.83kg
Thermal Conductivity: 0.022W/mK
R-Value: 1.82m2K/W
Water vapour resistivity: 100MN.s/g.m
Surface Spread of Flame: Class 1

Xtratherm ThinR XT/CW Partial Fill Cavity Wall Insulation is the best solution when designers or regulations demand additional thermal insulation in external masonry walls, without a substantial increase in the width of the cavity. Xtratherm Thin-R boards achieve high standards of insulation whilst maintaining a residual cavity to prevent moisture penetration, without a substantial increase in the width of the cavity and of the overall wall thickness.

APPLICATION
  • partial fill cavity wall insulation

CHARACTERISTICS

  • The board comprises a CFC/HCFC free rigid Polyisocyanurate (PIR) core between low emissivity foil facings.
  • Square Edge
  • Clear cavity maintained
  • No exposure restrictions
  • Extra thermal performance Refer to NBS clause F30 155, F30 12

The Low emissivity foil facing on Xtratherm boards improve the thermal performance of the wall. The residual cavity is the most effective method of preventing rain penetrating a wall from the outside. The wall insulation shall be installed in accordance with instructions issued by Xtratherm.

Tongue & Groove board profile is also available upon request.

CERTIFICATION
  • This product is manufactured to EN ISO 9001:2000
  • Product certification: BBA certification no. 07/4407
  • Standard: BS EN 13165
