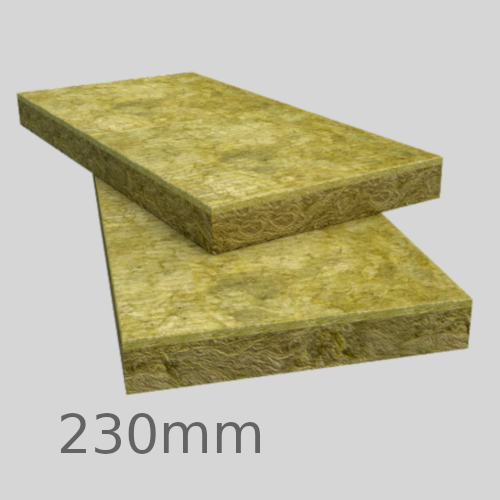

230mm Rockwool Rainscreen Duo Slab with Black Tissue on 2 Sides (pack of 3) - pallet of 10

230mm Rockwool Rainscreen Duo Slab with Black Tissue on 2 Sides (pack of 3) - pallet of 10
  • Product Code: A1-3020
  • Delivery Time: 2 - 3 weeks
  • Brand: Rockwool
  • (Tech. support: 08712221780)
  • Model: 1000mm x 600mm - 18m2
  • Weight: 248.40kg
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

To GET BEST PRICE for this product only fill below:

Need a quote for more products? and continue browsing to find other materials needed.

230mm Rockwool Rainscreen Duo Slab with Black Tissue on 2 Sides (pack of 3) - pallet of 10

Width: 600mm
Length: 1000mm
Pack Coverage: 18m2
Pack Quantity: 3
Pallet Quantity: 10
Density: 60kg/m3
Weight/m2: 13.8kg
Weight: 248.4kg
Thermal Conductivity: 0.035W/mK
R-Value: 6.57m2K/W
Fire Rating (Reaction to Fire): A1(Non-combustible)

230mm Rockwool Rainscreen Duo Slab with black tissue on 2 sides is a dual-density rigid insulation for use in ventilated cladding systems and sealed systems such as curtain walling. The outer layer of each slab has a higher density than the remainder of the product and added with a water-repellent agent during manufacture. The outer layer would withstand rigours imposed on site and the random fibre orientation would prevent water transmission through the layer. Rockwool Rainscreen Duo Slab is well-designed for use in severe climatic exposure conditions. The resilient inner face is designed to accommodate any irregularities in the substrate. The slab can be easily fitted around brackets and other awkward details, and can be tightly butt jointed, so the fibres of adjacent slabs will knit together to provide a continuous thermal performance, thus eliminating heat losses. It is a cost effective solution, as it requires fewer fixings, so very quick to install.

APPLICATION

  • Ventilated cladding systems,
  • Curtain walling.
CHARACTERISTICS

  • Fire Rated Euroclass A1 when assessed to EN 13501-1,
  • With black tissue on 1 side
  • Wind resistant,
  • Water resistant,
  • Reduces airborne sound,
  • High vapour resistance - reduces the risk of condensation,
  • Light and easy to cut to any shape with a sharp knife,
  • Made from a renewable and plentiful naturally occurring resource,
  • Does not contain gases that have ozone depletion potential (ODP) or global warming potential (GWP),
  • Approximately 97% recyclable.

CERTIFICATION
