100mm Rockwool Rainscreen Duo Slab with ALU Faced 2 Sides (pack of 6) - pallet of 8

100mm Rockwool Rainscreen Duo Slab with ALU Faced 2 Sides (pack of 6) - pallet of 8
100mm Rockwool Rainscreen Duo Slab with ALU Faced 2 Sides (pack of 6) - pallet of 8
  • Product Code: A1-3016
  • Delivery Time: 2 - 3 weeks
  • Brand: Kingspan
  • (Tech. support: 01544388601)
  • Model: 1000x600mm - 28.80m2
  • Weight: 172.80kg
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

100mm Rockwool Rainscreen Duo Slab with ALU Faced 2 Sides (pack of 6) - pallet of 8

Thickness: 100mm
Width: 1000mm
Length: 600mm
Pack Coverage: 28.8m2
Pack Quantity: 6
Pallet Quantity: 8
Density: 60kg/m3
Weight/m2: 6kg
Weight: 172.8kg
Thermal Conductivity: 0.035W/mK
R-Value: 2.86m2K/W
Fire Rating (Reaction to Fire): A1(Non-combustible)

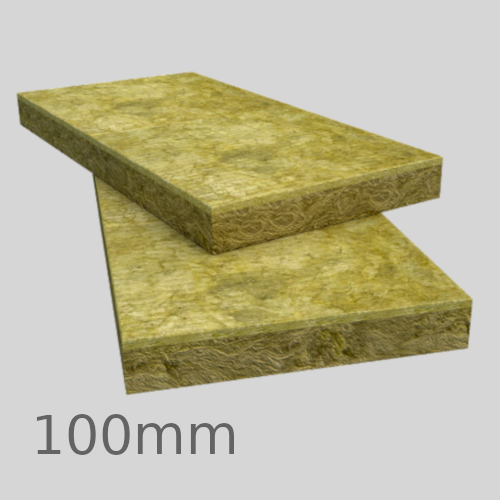

100mm Rockwool Rainscreen Duo Slab with ALU Faced 2 Sides is a dual-density rigid insulation for use in ventilated cladding systems and sealed systems such as curtain walling. The outer layer of each slab has a higher density than the remainder of the product and added with a water-repellent agent during manufacture. The outer layer would withstand rigours imposed on site and the random fibre orientation would prevent water transmission through the layer. Rockwool Rainscreen Duo Slab is well-designed for use in severe climatic exposure conditions. The resilient inner face is designed to accommodate any irregularities in the substrate. The slab can be easily fitted around brackets and other awkward details, and can be tightly butt jointed, so the fibres of adjacent slabs will knit together to provide a continuous thermal performance, thus eliminating heat losses. It is a cost effective solution, as it requires fewer fixings, so very quick to install.

APPLICATION
  • Ventilated cladding systems,
  • Curtain walling.
CHARACTERISTICS
  • Fire Rated Euroclass A1 when assessed to EN 13501-1,
  • Aluminium faced 2 sides,
  • Wind resistant,
  • Water resistant,
  • Reduces airborne sound,
  • High vapour resistance - reduces the risk of condensation,
  • Light and easy to cut to any shape with a sharp knife,
  • Made from a renewable and plentiful naturally occurring resource,
  • Does not contain gases that have ozone depletion potential (ODP) or global warming potential (GWP),
  • Approximately 97% recyclable.

CERTIFICATION
