175mm Ancon AC 31C Wall Tie - Remedial Wall Tie - box of 100
175mm Ancon AC 31C Wall Tie - Remedial Wall Tie - box of 100
- Product Code: A1-5384
- Delivery Time: 2 - 3 working days
- Brand: Ancon (Tech. support: : +44(0)1142381238)
- Model: 175mm
Our ratings on 08-11-2024:

4.8 out of 5
175mm Ancon AC 31C Wall Tie - Remedial Wall Tie - box of 100
Length: 175mm
Pack Quantity: 100

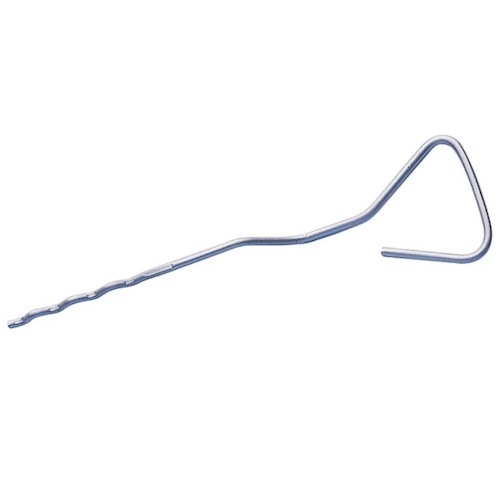

175mm AC 31 Wall Tie is a masonry remedial wall tie for tying together two leaves of solid walls, where bricks are removed then replaced in the outer leaf. The wavy end is resin-bonded into the inner leaf in a 10mm Ø hole. The triangular end sits in the bed joint. Ancon AC 31C wall tie is similar to the AC 31 but cranked by 25mm to aid fixing to the inner leaf.
CHARACTERISTICS
- Masonry-to-masonry remedial wall tie,
- Cranked by 25mm to aid fixing to the inner leaf.
Brand: Ancon
Model: 280mm
Delivery Time: 2 - 3 working days
280mm Staifix Resin/Resin Wall Tie is a masonry remedial wall tie for use for tying together two leaves of solid walls. This RR tie is used where mechanical expanders are unusable. Resin is added to both ends. A plastic sieve can be used to retain resin and is particularly useful in perfor..
Brand: Ancon
Model: 290mm
Delivery Time: 2 - 3 working days
290mm Ancon Teplo-R Wall Tie is a remedial wall tie is an ultra-low thermal conductivity wall tie manufactured from basalt fibres set in a resin matrix. It minimises heat loss across an insulated cavity, improving the energy efficiency of a masonry cavity wall. It is a plain-ended basalt fibre wall ..
Brand: Ancon
Model: 152mm
Delivery Time: 1-3 working days
152mm Ancon Staifix Timber Frame Tie is a cranked tie used to fix brickwork or blockwork to timber-framed structures up to 4 storeys in height. It is a type 6 tie that has been independently tested for use with 15mm OSB SIPS (structural insulated panel) panel. It is supplied with an annular rin..
£87.63
£105.16 inc VAT
Brand: Ancon
Model: 230mm - BFL-5
Delivery Time: 1-3 working days
230mm Ancon Teplo-BFL-5 Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFL-5 Wall Tie has a..
£2.37
£2.84 inc VAT
Brand: Ancon
Model: 275mm
Delivery Time: 2 - 3 working days
275mm Ancon Staifix HRT4 Wall Tie is a low conductivity stainless steel masonry wall tie for use in domestic houses up to 10 metres in height. Wall ties should be pressed down in fresh mortar. They should be surrounded by mortar and they should be installed as the inner leaf is constructed..
£8.05
£9.66 inc VAT
Brand: Ancon
Model: SD25/275
Delivery Time: 2 - 5 working days
Ancon SD25/275 Channel Wall Ties with a safety ended v drip for 210-234mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. They are placed in the channel by rotating through 90° and can be easily moved to the required position to be built into the masonry bed joint..
