165mm Ancon Teplo-L-Tie - 5mm diameter
Guide Price
165mm Ancon Teplo-L-Tie - 5mm diameter
Guide Price: £2.08 (£2.50 inc VAT)
- Product Code: A1-3599
- Delivery Time: 3 - 5 days
- Brand: Ancon (Tech. support: : +44(0)1142381238)
- Model: 165mm - 5mm
Our ratings on 16-12-2024:
4.8 out of 5

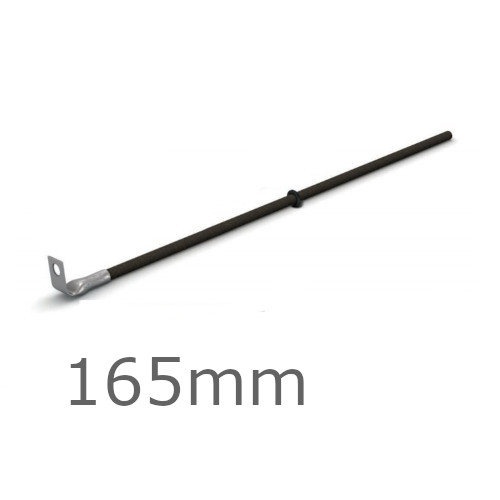

165mm Ancon Teplo-L-Tie - 5mm diameter
Length: 165mm
165mm Ancon Teplo-L-Tie is an ultra-low thermal conductivity wall tie manufactured from basalt fibres set in a resin matrix. It minimises heat loss across an insulated cavity, improving the energy efficiency of a masonry cavity wall. It has stainless steel upstand with a 7mm fixing hole for a secondary fixing. It is suitable for surface fixing to masonry and structural timber, steel or concrete frames. The Teplo-L-Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and the structure. It is suitable for fixing to timber, steel, concrete and any type of masonry. The Teplo-L-Tie is suitable for buildings requiring 120-minute fire resistance. Teplo-L-Ties should achieve an embedment depth of 65mm in the outer leaf.
Suitable Fixings
- Masonry: Plug and Screw
- Concrete: Plug and Screw, Expansion Bolt
- Steel: Set Screw, Self-drilling Screw
- Timber: Countersunk Wood Screw
CHARACTERISTICS
- 7 mm diameter hole in the upstand suits a variety of fixings,
- Suitable for cavities of 83-100 mm.
- Can be fixed to concrete, masonry, steel and timber.
- Movable 'O' ring drip to prevent water crossing the cavity.
- The Teplo-L-Tie has been independently tested, has BBA Approval and can be used in line with NHBC standards.
INSTALLATION
- O' rings should be moved along the shank to the open cavity.
- Installed ties should be clear of mortar droppings to allow the drip to function and prevent water from crossing to the inner leaf of masonry.
- The outer leaf brickwork should be kept one course clear during installation of ties.
