126mm Xtratherm FR/TP Thermal Ply Flat Roof Board - 120mm PIR and 6mm Plywood Board

126mm Xtratherm FR/TP Thermal Ply Flat Roof Board - 120mm PIR and 6mm Plywood Board
126mm Xtratherm FR/TP Thermal Ply Flat Roof Board - 120mm PIR and 6mm Plywood Board
  • Product Code: A1-4635
  • Delivery Time: 1-3 working days
  • Brand: Xtratherm
  • (Tech. support: 03712221055)
  • Model: 2400x1200 - 2.88m2
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

126mm Xtratherm FR/TP Thermal Ply Flat Roof Board - 120mm PIR + 6mm Plywood Board

Width: 1200mm
Length: 2400mm
Board Coverage: 2.88m2
Thermal Conductivity: 0.022W/mK
R-Value: 5.45m2K/W
Compressive Strength: 150kPa

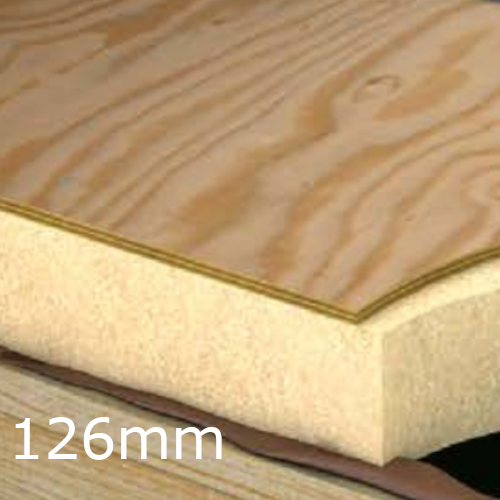

126mm Xtratherm FR/TP Ply is a composite insulated panel of 120mm Xtratherm Polyisocyanurate core with a composite foil face, bonded to 6mm WBP grade plywood board. Xtratherm FR/TP Ply is designed to provide high levels of thermal insulation and decking in one operation for new and refurbishment flat roof applications. 16-20 Suretwist fixings are needed per 1200x2400mm board depending on rafter spacing. Fixing the FR/TP board onto a bed of mastic creates a continuous vapour control layer. Core density: 32kg/m3

APPLICATION
  • Flat roof applications.

CHARACTERISTICS
  • Faced to the underside by a gas-tight foil membrane,
  • Creates a continuous vapour control layer,
  • Suitable for use in damp environment,
  • Low thermal conductivity,
  • Durable and will perform for the service life of the building
  • Lightweight, robust and easy to handle,
  • Can be worked using a saw or sharp knife
CERTIFICATION
Manufactured to,
  • EN 13165
  • BS EN ISO 9001 Quality Management System
  • BS EN ISO 14001 Environmental Management System
