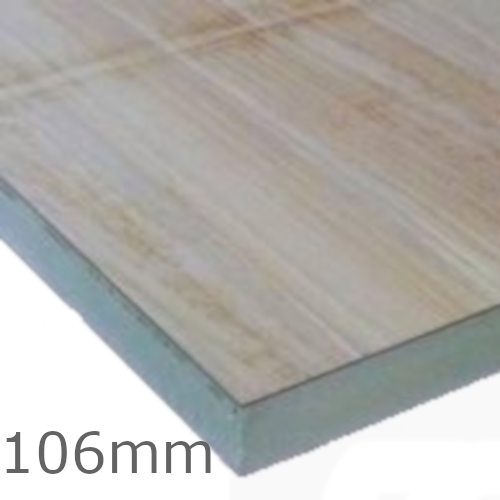

106mm Celotex TD4000 PIR Flat Roof Insulation Board with Plywood

106mm Celotex TD4000 PIR Flat Roof Insulation Board with Plywood
Rate this product
106mm Celotex TD4000 PIR Flat Roof Insulation Board with Plywood
  • Product Code: A1-176
  • Delivery Time: 1 - 5 working days
    • Due to nationwide shortage of PIR insulation lead time may be longer for this product.
  • Brand: Celotex (Tech. support: 01473820850)
  • Model: TD4000- 2400 x 1200
  • Weight: 6.98kg
Product discontinued. Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Ask question about this product. For price use 'Add to Quote' button.
To GET BEST PRICE for this product only fill below:
Send for Quotation
Need a quote for more products? and continue browsing to find other materials needed.

106mm Celotex TD4000 PIR Flat Roof Insulation Board with Plywood

Width: 1200mm
Length: 2400mm
Board Coverage: 2.88m2
Weight/m2: 2.42kg
Thermal Conductivity: 0.022W/mK
R-Value: 4.55m2K/W
Compressive Strength: 120kPa

Celotex TD4000 comprises a polyisocyanurate rigid foam insulation core, with a thermal conductivity of 0.022 W/mK, and low emissivity aluminium foil facings on both sides bonded to a layer of 5.5mm WBP exterior grade plywood.

APPLICATION

Celotex TD4000 is purpose designed for use in light traffic flat roof applications.

CHARACTERISTICS

  • Is a three-in-one product to provide deck, vapour control layer and insulation
  • Provides reliable long term energy savings for buildings
  • Is ideal for use in occasionally trafficked applications
  • Provides warm roof construction due to over joist installation
  • Is rapidly installed and weatherproofed
  • Accepts a wide variety of weathering systems
  • Is available in a standard board size of 1200mm x 2400mm

CERTIFICATION

  • The insulation component of Celotex TD4000 is A+ rated when compared to the BRE Green Guide 2008
  • Celotex TD4000 is CFC/HCFC free with zero ozone depletion potential (ODP) and low global warming potential (GWP)
  • Celotex TD4000 received CE marking compliance to BS EN 13165:2001
  • The board is manufactured in accordance with quality management systems with BS EN ISO 9001:2000 by Celotex Limited
