Insulated Render Systems

RB565 Metal Resilient Bar Speedline

RB565 Metal Resilient Bar Speedline
Rate this product
RB565 Metal Resilient Bar Speedline
Price: £4.59 (£5.51 inc VAT)
10 or more £4.31 (£5.17 inc VAT)
50 or more £4.20 (£5.04 inc VAT)
100 or more £4.14 (£4.97 inc VAT)
  • Product Code: A1-339
  • Delivery Time: 1 - 2 days
  • Brand: Speedline
    • (Tech. support: 07703104875)
  • Model: 3m
  • Weight: 3.15kg
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5

RB565 Metal Resilient Bar Speedline

Length: 3000mm
Weight: 3.15kg

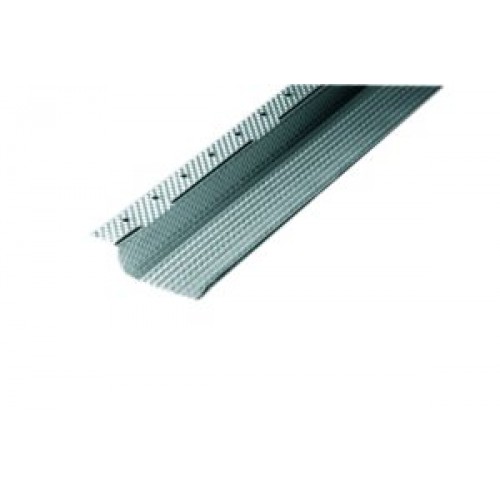

Resilient Bar is a thin metal channel designed to substantially improve the sound insulation of plasterboard walls and ceilings. The channel effectively isolates the plasterboard from the studwork, eliminating 'direct contact' to dissipate sound which would normally be transferred through the frame. This system is easy to install and produces excellent results especially when used with suspended high mass ceilings.

INSTALLATION
  • The Resilient Bar is fixed at right angles to the joists at 450mm maximum centres for single or double applications
  • When 2400mm board is being used the Resilient Bar will need to be reduced to 400mm centres
  • To ensure maximum sound insulation performance, screws fixing the plasterboard must not be in contact with the joists
  • When installing a dual layer of boards, all joints in the second layer must be staggered in relation to those of the first layer
  • Mineral wool insulation can be included in the floor cavity to improve acoustic performance
  • The Resilient Bar can easily be cut with tinsnips or hacksaw
