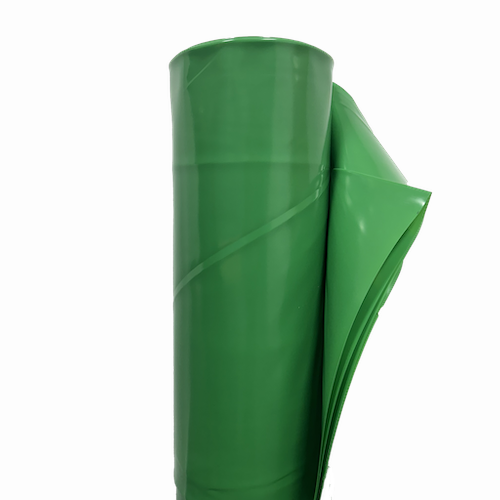

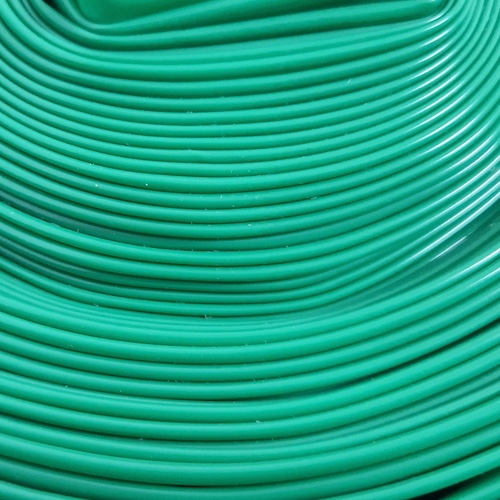

Novia 1600g Radon Gas Barrier Membrane - 4m x 20m Roll
Novia 1600g Radon Gas Barrier Membrane - 4m x 20m Roll
- Product Code: A1-5137
- Delivery Time: 1 - 5 working days
- Brand: Novia (Tech. support: 01622678952)
- Model: 4m x 20m
- Weight: 29.00kg
Our ratings on 08-11-2024:
4.8 out of 5
Novia 1600g Radon Gas Barrier Membrane - 4m x 20m Roll
Width: 4000mm
Length: 20000mm
Weight: 29kg
Novia 1600g Radon Gas Barrier Membrane is a virgin grade polythene material suitable for use as a loose laid Radon gas barrier and damp proof membrane. The material has a thickness of 400 microns and is suitable for both taped or welded installations, Novia 1600g Radon Barrier is manufactured to comply with BR211 and current UK Building Regulations for Radon protection and it meets EN 13967 as a damp proof membrane and is UKCA approved.
CHARACTERISTICS- Virgin grade polythene, no recycled content
- 400 microns (0.4mm/1600 gauge)
- Tough, tear-resistant
- Easy to install loose-laid membrane
- Suitable for both taped or welded installations
- Meets EN 13967 for use as a DPM
- UKCA approved
- BR 211 compliant
- Radon Barrier Damp Proof Membrane for solid concrete ground floors
INSTALLATION

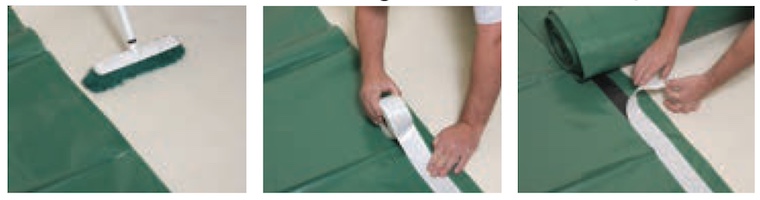

Taped system,
- Ensure the surface is dry and dust free before unrolling.
- Once the membrane is flat, apply the double-sided butyl tape (50mm width) approximately 50mm from the edge, and temporarily leave the backing paper on.
- Prepare the second length of radon barrier by once again ensuring the surface underneath is dry and dust free.
- Then lay the second length of membrane with a 150mm overlap on to the first length of membrane.
- Join them together by unpeeling the backing paper of the double-sided butyl tape.
- It is recommended to apply firm pressure along all joints to form a strong sealing bond.
- Where the two membranes overlap, the excess membrane needs to be stuck firmly in place using a single-sided lap tape.
- Apply this tape equidistant over the two membranes and apply firm pressure to complete the seal.
Welded system,
- When installing the membrane, welding should be undertaken by competent and experienced person.
- Tests should be undertaken prior to welding, to ensure the correct temperature and speed is achieved.
- Novia 1600g Radon Barrier should weld between 180 - 230°C and 2-3m per minute.
- The joint to be welded should be overlapped by 100mm as a minimum, with a 50mm wide weld.
- Welds on gas membranes are subject to independent verification in accordance with CIRIA C735. This includes joint integrity testing.
