Cellecta Yelofon HD 10Plus System (combi pack)
Guide Price
Cellecta Yelofon HD 10Plus System (combi pack)
Guide Price: £309.20 (£371.04 inc VAT)
Price per m2: £6.25/m2 (£7.50 inc VAT)
- Product Code: A1-750
- Delivery Time: 2 - 3 working days
- Brand: Cellecta (Tech. support: 01634296677)
- Model and Size: HD10 System
- Weight: 49.50kg
Our ratings on 16-12-2024:
4.8 out of 5
Cellecta Yelofon HD 10+ System (combi pack)
Coverage: 49.5m2
Weight/m2: 1kg

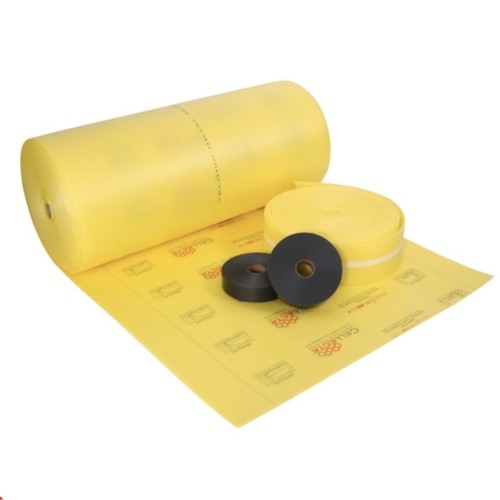

YELOfon HD10+ is a complete system consisting of the following three key components. All components are supplied, no additional items are required. To comply with Robust detail E-FC-5 and achieve maximum soundproofing performance it is essential that all three components are installed.
- YELOfon HD10+ rolls Installed directly on to the concrete floor,
- YELOfon E-Strip Installed round the floor perimeter at the beginning of the installation to eliminate potential acoustic flanking,
- YELOfon J-Strip Acoustic adhesive joining strip, used to combine sheets of YELOfon HD10+ and the surrounding E-strip. Eliminates risk of sound leakage.
When installed correctly the YELOfon HD10+ system provides a very high performance acoustic system for under screeded floors.
CHARACTERISTICS- High impact sound deadening properties
- Easy to cut to size
- Easy to handle and install
- Suitable for all types of concrete floors and screeds
- Compliant with Robust detail E-FC-5
- Over 4,500,000m successfully installed
Cellecta Yelofon HD 10+ System is applicable to all types of concrete floors and screeds, especially designed to insulate concrete separating floor from a floating screed.
CERTIFICATION
YELOfon-HD10-brochure.pdf
