British Gypsum Gypframe 92 AS 50 Acoustuds 3.6 m (pack of 10)

British Gypsum Gypframe 92 AS 50 Acoustuds 3.6 m (pack of 10)
Price: £250.72 (£300.86 inc VAT)
3 or more £244.35 (£293.22 inc VAT)
4 or more £237.99 (£285.59 inc VAT)
5 or more £232.60 (£279.12 inc VAT)
  • Product Code: A1-793
  • Delivery Time: 2 - 4 days
  • Brand: British Gypsum
  • (Tech. support: 01159456123)
  • Model: 92 AS 50 Acoustuds - 3.6 m
  • Weight: 23.40kg
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Show other lengths

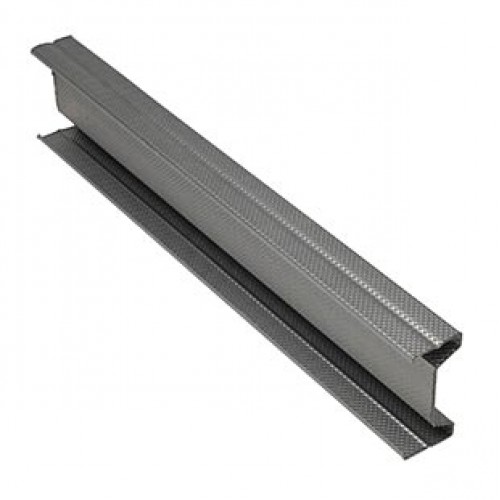

British Gypsum Gypframe 92 AS 50 Acoustuds 3.6 m (pack of 10)

Thickness: 0.5mm
Width: 92mm
Length: 3600mm
Linear meter weight: 0.65kg

British Gypsum Gypframe 92 AS 50 3.6 m Acoustuds are made to fit 43mm, 70mm, 92mm and 146mm wall systems and considerably improve their acoustic performance due to the especially designed profile which absorbs the sound as it passes through the wall construction thus decreasing the noise impact. They have been designed to provide greater strength when compared to the alternative 'Cstuds, due to the wider flange widths.

The studs are used in various systems, including:

  • GypWall CLASSIC is a lightweight system which provides a 30-120 minutes of fire resistance, has substantial sound insulation performance, also protecting the metal framework from warping, rotting and twisting. The system can be have a number of different applications only if the position of the fixings and the installation are pre-planed and determined;
  • GypWall ROBUST is available in there stud options (70mm, 92mm and 146mm), meeting BS 5234 requirements, great sound insulation and 60 minutes of fire resistance, and all in a single layer. Due to the durability it provides, it can be applied to almost any commercial building. Some constructions may include installing control joints in the partition, coinciding with movement joists, all in order of relieving the construction of stresses caused by contraction and expansion.
APPLICATION

Gypframe 92 AS 50 3.6 m Acoustuds are used for 43mm, 70mm, 92mm and 146mm wall systems.

CERTIFICATION

The product is in compliance with the:

  • British Standard BS 7364
  • European Standard EN 14195
  • American Standard ASTM C645
