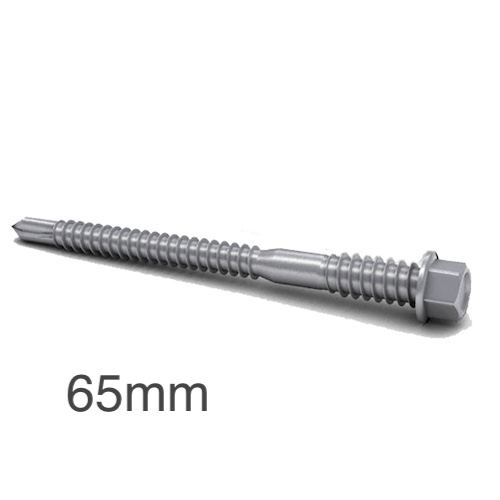

Ancon HTSS-65-2PT-W Screws - Fixings for Ancon 25/14 Restraint System to Steel Frame - bag of 100
Ancon HTSS-65-2PT-W Screws - Fixings for Ancon 25/14 Restraint System to Steel Frame - bag of 100
- Product Code: A1-5551
- Delivery Time: 2 - 5 working days
- Brand: Ancon (Tech. support: : +44(0)1142381238)
- Model and Size: 65mm - bag of 100
Our ratings on 16-12-2024:
4.8 out of 5
Ancon HTSS-65-2PT-W Screws - Fixings for Ancon 25/14 Restraint System to Steel Frame - bag of 100
Length: 65mm
Pack Quantity: 100
Diameter: 5.5mmmm
Insulation Thickness: 30-46mmmm

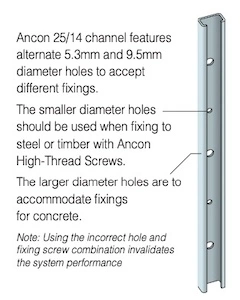

Ancon HTSS-65-2PT-W Screws are used to fix an outer leaf of brickwork through any kind of insulation to a steel frame structure. These screws feature a shaped drill tip of hardened steel that allows installation without pre-drilling. Ancon HTSS-65-2PT-W high thread screws accommodate 30-46mm thick insulation between the Ancon 25/14 stainless steel channel and a steel frame. Also suitable for fixing to timber.
BENEFITS
- Quick installation,
- Avoids compression of insulation,
- Improved thermal bridging.
Note: Channels and Ties are bought separately
Ancon 25-14 Restraint System.pdf
