23mm KarmaFloor Acoustic Overlay Floor Chipboard
Guide Price
23mm KarmaFloor Acoustic Overlay Floor Chipboard
Guide Price: £39.97 (£47.96 inc VAT)
Price per m2: £27.76/m2 (£33.31 inc VAT)
- Product Code: A1-82
- Delivery Time: 3 - 5 days
- Brand: CMS Danskin Acoustics (Tech. support: : 01925577711)
- Model and Size: 600x2400mm - 1.44m2 23mm
Our ratings on 16-12-2024:
4.8 out of 5
23mm KarmaFloor Acoustic Overlay Floor Chipboard
Width: 600mm
Length: 2400mm
Coverage: 1.44m2
Fire Rating (Reaction to Fire): B(Class 0)

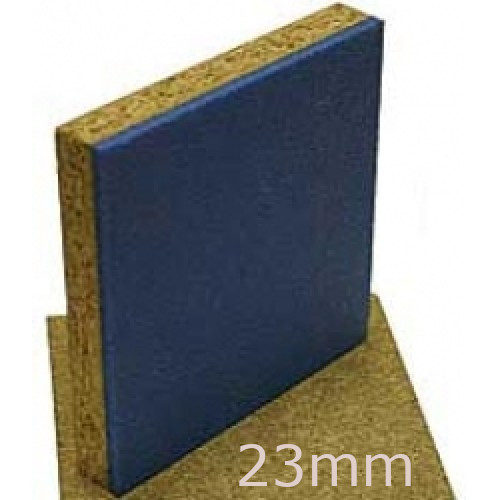

KarmaFloor Acoustic Overlay Chipboard is designed to reduce impact sound through floors using a heavy material isolated by a softer resilient layer. The board consists of a 5 mm closed cell, cross linked polyethylene resilient layer, laminated to moisture resistant tongue and groove chipboard.
APPLICATIONS
- new build or refurbishment even concrete sub-floors,
- new build or refurbishment timber floors
CHARACTERISTICS
- Consists of a 5mm closed cell, cross-linked polyethylene resilient layer, laminated to a moisture resistant tongued and grooved chipboard,
- Fire rating of top layer Class 0 surface spread of flame to BS 476,
- Minimal height increase making it ideal for refurbishment projects,
- Suitable for use with concrete floors and timber floor detail,
- Eliminates the requirement for a damp proof membrane,
- Non load-bearing partitions can be built off the floating floor,
- Quick and easy to install, offering savings in labour.
CONCRETE OVERLAY FFT-5 SOLUTION
| PRODUCT DESCRIPTION |
IMPACT PERfORMANCE Lw
|
| 23mm Karma Acoustic Overlay | 18 dB |
TIMBER JOIST OVERLAY SOLUTION
| PRODUCT DESCRIPTION |
IMPACTPERfORMANCE Lnw
|
AIRBORNE PERfORMANCE Rw(Ctr)
|
|
Karma Acoustic
Overlay and Plank
|
56 dB | 60 (-6) dB |
|
Karma Acoustic
Overlay without Plank
|
58 dB | 58 (-6) dB |
Karma Overlay 23 Data sheet.pdf
