90mm Kingspan Thermaroof TR26 (pack of 3)
Guide Price
90mm Kingspan Thermaroof TR26 (pack of 3)
Guide Price: £346.53 (£415.84 inc VAT)
Price per m2: £40.11/m2 (£48.13 inc VAT)
5 or more £343.06 (£411.67 inc VAT)
10 or more £336.13 (£403.36 inc VAT)
20 or more £329.19 (£395.03 inc VAT)
- Product Code: A1-953
- Delivery Time: 3 - 5 days
- Brand: Kingspan (Tech. support: 01544388601)
- Model and Size: 2400x1200mm - 8.64m2
- Weight: 25.23kg
Due to nationwide shortage of PIR insulation lead time may be longer for this product.
Our ratings on 16-12-2024:
4.8 out of 5
90mm Kingspan Thermaroof TR26 (pack of 3)
Thickness: 90mm
Width: 1200mm
Length: 2400mm
Pack Coverage: 8.64m2
Density: 32kg/m3
Weight/m2: 2.88kg
Weight: 25.23kg
Thermal Conductivity: 0.022W/mK
R-Value: 4.05m2K/W
Compressive Strength: 150kPa
Vapour resistivity: 100

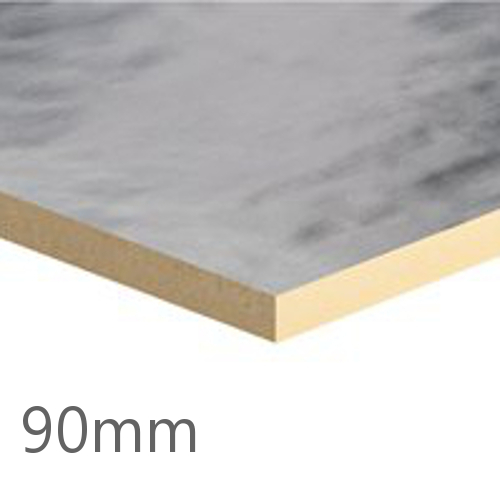

90mm Kingspan Thermaroof TR26 is a high performance, fibre free, rigid thermoset PIR insulation core faced on both sides with a low emissivity composite foil facing which is used for insulating flat roofs and is fully compatible with most mechanically fixed single ply waterproofing systems and most green roof systems.
CHARACTERISTICS
- High performance rigid thermoset insulation thermal conductivity 0.022 W/m.K,
- FM approved for Class 1 steel deck roof assemblies,
- Fully compatible with mechanically fixed single ply waterproofing systems,
- Compatible with green roof systems,
- Ideal for fast track building programmes,
- Resistant to the passage of water vapour,
- Easy to handle and install,
- Ideal for new build and refurbishment,
- Non-deleterious material,
- Manufactured with a blowing agent that has zero ODP and low GWP
APPLICATION
90mm Kingspan Thermaroof TR26 is used for insulating flat roofs waterproofed with mechanically fixed single-ply waterproofing, especially compatible with green roofs and installed over metal or concrete decks.
CERTIFICATION
Manufactured in accordance with,
- BS EN ISO 9001: 2015 (Quality Management Systems. Requirements),
- BS EN ISO 14001: 2015 (Environmental Management Systems. Requirements),
- BS OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements),
- Harmonised Standard BS EN 13165: 2001.
And also,
- Certified as achieving Class 1 Insulated Steel Deck Pass to Factory Mutual Research Standards 4450: 1989,
