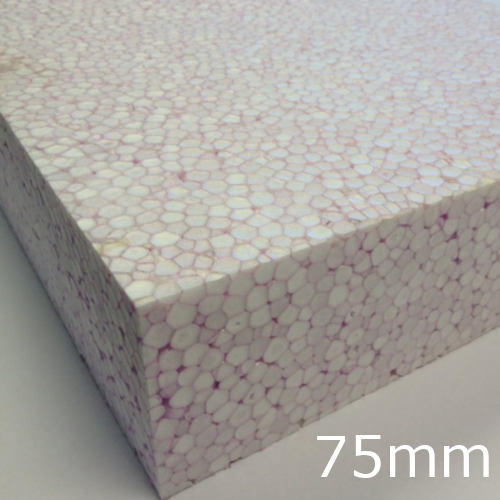

75mm Heaveguard - Expanded Polystyrene Board Used Against Ground Heave - 2400mm x 1200mm
75mm Heaveguard - Expanded Polystyrene Board Used Against Ground Heave - 2400mm x 1200mm
- Product Code: A1-3741
- Delivery Time: 2 - 3 working days
- Brand: Cordek
- Model: 2400x1200mm - 2.88m2
Our ratings on 16-12-2024:
4.8 out of 5
75mm Heaveguard - Expanded Polystyrene Board Used Against Ground Heave - 2400mm x 1200mm
Width: 1200mm
Length: 2400mm
Board Coverage: 2.88m2

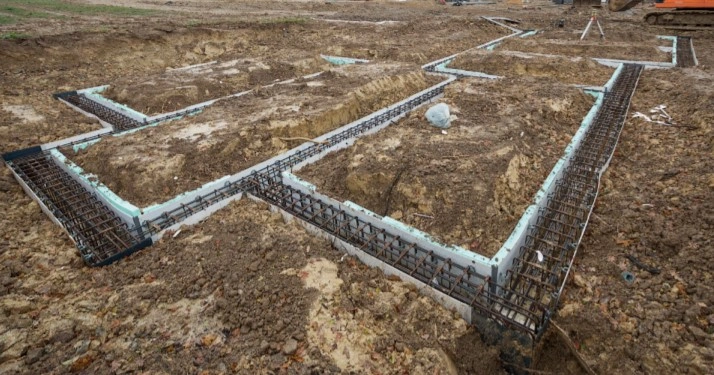

75mm Heaveguard is a compressible low density Expanded Polystyrene (EPS) board, used when foundations need to be protected against ground heave and against lateral heave. Heaveguard is used to prevent potential problems in foundations due to moisture movement in soils, such as clay heave, reducing pressure on ground beams in piled foundations, and on the sides of trench fills. The expansion and contraction process during wet and dry periods is known as clay heave and this can cause severe problems with foundations. Heaveguard can be used as permanent shuttering for cast in-situ reinforced concrete.
APPLICATION
- When foundations need to be protected against ground heave and against lateral heave.
CHARACTERISTICS
- A rapid, cost effective solution to clay-heave problems,
- The initial compression of the material during casting can be disregarded,
- It is rot-proof and durable and will withstand the conditions encountered below ground,
- It will not degrade in the presence of high levels of ground water or precipitation.
CERTIFICATION
- BBA Certified - Certificate number 17/5448.
Heaveguard_data_sheet.pdf
