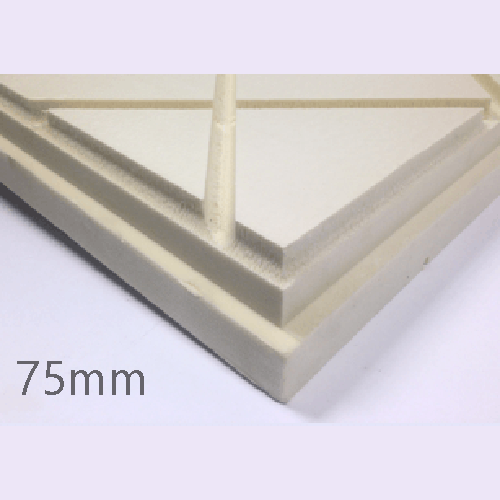

75mm Cellecta Hexatherm XDRAiN Drainage Channel Inverted Roof Board - XPS Insulation

75mm Cellecta Hexatherm XDRAiN Drainage Channel Inverted Roof Board - XPS Insulation
75mm Cellecta Hexatherm XDRAiN Drainage Channel Inverted Roof Board - XPS Insulation
75mm Cellecta Hexatherm XDRAiN Drainage Channel Inverted Roof Board - XPS Insulation
75mm Cellecta Hexatherm XDRAiN Drainage Channel Inverted Roof Board - XPS Insulation
75mm Cellecta Hexatherm XDRAiN Drainage Channel Inverted Roof Board - XPS Insulation
  • Product Code: A1-1674
  • Delivery Time: 2 - 4 days
  • Brand: Cellecta
  • (Tech. support: 01634296677)
  • Model and Size: 600x1250mm - 0.75m2
  • Weight: 1.91kg
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

75mm Cellecta Hexatherm XDRAiN Drainage Channel Inverted Roof Board - XPS Insulation

Width: 600mm
Length: 1250mm
Density: 34kg/m3
Weight/m2: 2.55kg
Weight: 1.91kg
Thermal Conductivity: 0.033W/mK
R-Value: 2.27m2K/W
Compressive Strength: 300kPa

75mm Cellecta Hexatherm XDRAiN is a high performance extruded polystyrene inverted thermal roof boards, featuring integrated drainage channels on their underside, which speeds up the shedding of rainwater from the roof, eliminating the need for a separating drainage mat, making them ideal for green roofs. Manufactured in accordance with BS EN 13374 and tested to BS EN 12267.

CHARACTERISTICS
  • Easy to install,
  • Integral drainage channels
  • 100% recyclable,
  • CFC and HCFC free,
  • Closed cell structure,
  • High compressive strength,
  • Life-long thermal performance,
  • Zero ODP & Less than 5 GWP.
APPLICATION

Cellecta Hexatherm XDRAiN thermal roof insulation board is used where speeding up the shedding of rainwater is a necessity.




CERTIFICATION

Manufactured in accordance with BS EN 13374 and tested to BS EN 12267

Brand: Cellecta Model and Size: 600x1250mm - 0.75m2
