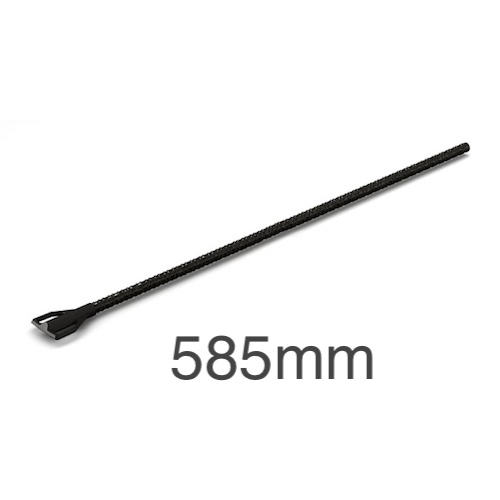

585mm Ancon Teplo-BFR Wall Tie for 450mm Cavity - Type 4 Tie




585mm Ancon Teplo-BFR Wall Tie for 450mm Cavity - Type 4 Tie
- Product Code: A1-5359
- Delivery Time: 1-3 working days
- Brand: Ancon (Tech. support: : +44(0)1142381238)
- Model and Size: 585mm
Our ratings on 16-12-2024:

4.8 out of 5
585mm Ancon Teplo-BFR Wall Tie for 450mm Cavity - Type 4 Tie
Length: 585mm
Cavity width: 450mm
585mm Ancon Teplo-BFR Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFR Wall Tie is a 7mm diameter tie manufactured from basalt-fibres with a plain end for resin anchoring into an existing structure and a moulded safety end for building into a new bed joint.
CHARACTERISTICS
- Can be used on concrete, masonry walls
- Low thermal conductivity wall tie,
- Minimises heat loss across an insulated cavity,
- Ideal for cavity wall construction where mortar joints do not align,
- The free end can be chemically embedded in 10mm diameter hole.
