52mm JCW Acoustic Quilt - 600mm wide
Guide Price
52mm JCW Acoustic Quilt - 600mm wide
Guide Price: £74.49 (£89.39 inc VAT)
Price per m2: £24.83/m2 (£29.80 inc VAT)
To add to cart change quantity to minimum of 18. If you need less, ask for a price or add to a quote list.
36 or more £70.77 (£84.92 inc VAT)
54 or more £67.23 (£80.68 inc VAT)
72 or more £63.87 (£76.64 inc VAT)
- Product Code: A1-1982
- Delivery Time: 2 - 3 working days
- Brand: JCW (Tech. support: 08453402858)
- Model and Size: 5000x600mm - 3.00m2
- Weight: 9.00kg
Our ratings on 16-12-2024:
4.8 out of 5

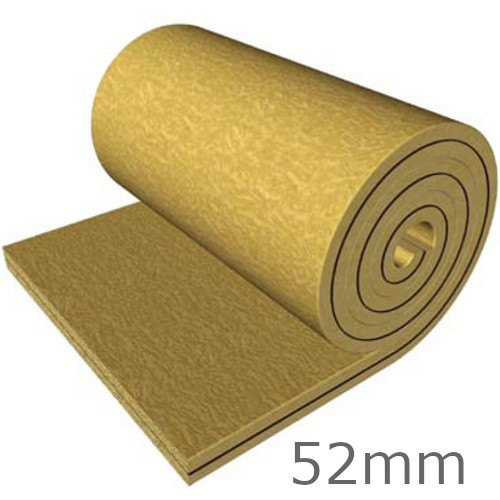

52mm JCW Acoustic Quilt - 600mm wide
Width: 600mm
Roll Coverage: 3m2
Density: 57.7kg/m3
Weight/m2: 3kg
Weight: 9kg
52mm JCW Acoustic Quilt is a premium partition insulation roll for walls manufactured by sandwiching a 2mm acoustic barrier membrane between 2 layers of 25mm mineral wool. The sound barrier properties of the acoustic membrane are complemented and enhanced by the absorption qualities of the mineral wool. It can be fitted between the studs in metal or timber wall partitioning systems, suspended between the joists of a timber floor or laid over ceilings.
- Easy as a quick to install,
- An acoustic barrier membrane between 2 layers of glass mineral wool,
- Enhanced performance metal stud partition,
- Independent partition with 20mm air gap,
- Easily fitted using dry lining skills,
- Glass mineral wool layers complement the barrier membrane by absorbing sound,
- Compliant with Part E building regulations.
- New build
- Refurbishments
- Domestic upgrade
- In independent and partition stud walls,
- Over ceilings,
- Between the joists of a timber floor.

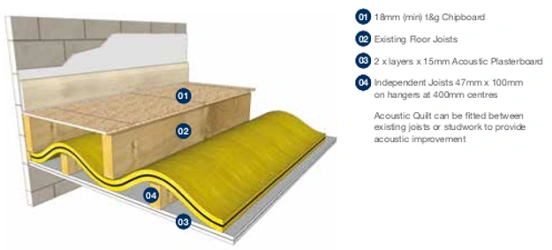

Independent Ceiling
- Roll out and loose lay the JCW Acoustic Quilt in the opposite direction to the ceiling joists.
- Ensure that there are no gaps between each quilt layer.
- If necessary overlap the Quilt layers to maintain a continuous barrier.

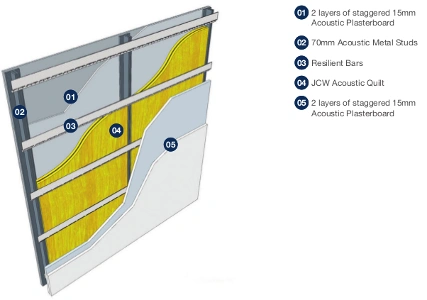

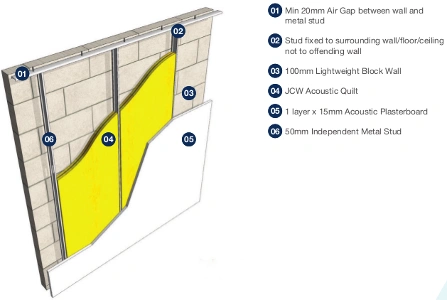

Single Frame Partition Wall & Independent Wall lining
- It is important that the JCW Acoustic Quilt is adequately secured between the studs to prevent slumping.
- L brackets secured into the top of the frame or stud may be required.
JCW Acoustic Quilt has been independently tested in a UK Verified independent UKAS accredited laboratory.
JCW acoustic_quilt_ind_wall_lining.pdf
