Insulated Render Systems

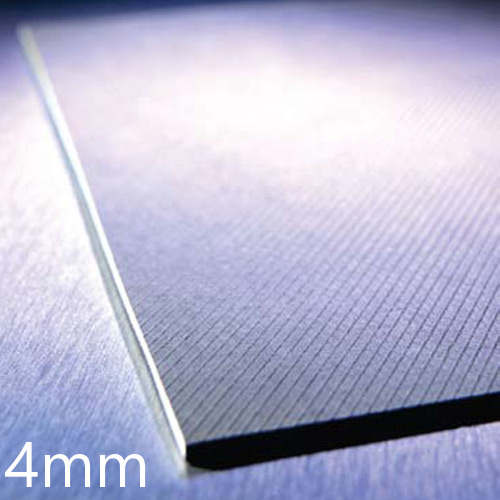

4mm JCW Acoustic Barrier Mat - 1200mm x 1200mm roll

4mm JCW Acoustic Barrier Mat - 1200mm x 1200mm roll
Guide Price
Rate this product
4mm JCW Acoustic Barrier Mat - 1200mm x 1200mm roll
Guide Price: £27.32 (£32.78 inc VAT)
Price per m2: £18.97/m2 (£22.77 inc VAT)
To add to cart change quantity to minimum of 15. If you need less, ask for a price or add to a quote list.
  • Product Code: A1-1960
  • Delivery Time: 2 - 3 working days
  • Brand: JCW
    • (Tech. support: 08453402858)
  • Model: 1200mm x 1200mm - 1.44m2
  • Weight: 14.40kg
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Ask question about this product. For price use 'Add to Quote' button. Checkout
Show other thicknesses

To GET BEST PRICE for this product only fill below:

Send for Quotation
Need a quote for more products? and continue browsing to find other materials needed.

4mm JCW Acoustic Barrier Mat - 1200mm x 1200mm roll

Width: 1200mm
Roll Coverage: 1.44m2
Density: 2500kg/m3
Weight/m2: 10kg
Weight: 14.4kg

4mm JCW Acoustic Barrier Mat is an acoustic barrier matting that offers very good airborne performance across the frequency range. It is a very versatile and dense product that is used for a wide range of applications where airborne sound reduction is required. The most common installation areas are floors, walls & ceilings.

CHARACTERISTICS

  • Very quick and simple to install,
  • Noticeable improvements will be gained when bonding barrier matting between two layers of Plasterboard on walls & ceilings or pinning on to stud work or joists prior to plasterboard fixing,
  • Noticeable airborne improvement gain with minimal height loss when 2 barrier matting layers are laid on the floor in opposite directions,
  • Ideal as a separating curtain wall between offices above walls,
  • Perfect product for dampening steelwork, ducting and machinery casings etc,
  • Can be loose laid,
  • Can be partially or fully bonded to the sub-floor.

APPLICATION

  • New build
  • Refurbishments
  • Domestic upgrade
  • On floors, walls & ceilings.
INSTALLATION
Floors
  • Cut the first row of matting continuously across the room up to the wall edges and if possible beneath the skirting boards if fitted.
  • The second and subsequent rows should either be tightly butt edged or overlapped by 25mm to ensure optimum airborne performance.
  • As JCW Barrier Matting is an impervious product the best adhesive to use for an instant bond is either a Spray Contact Adhesive for partial bond or trowel/spreader applied Contact Adhesive if full bonding is required.
  • Contact adhesive should be spread immediately once applied to the JCW Barrier Matting.
Walls
  • The JCW Barrier Matting can be installed in continuous vertical lengths with vertical joints centrally between the studs or metal work.
  • Cut the first vertical length and secure centrally between the studs or metal work using a few Clout Nails.
  • Then fix the plasterboard/s over ensuring all plasterboard joints and/or minor gaps are sealed with JCW Acoustic Sealant/Mastic.

CERTIFICATION

It has been independently tested in a UK Verified independent UKAS accredited laboratory. Pre-completion testing is not required.
