470mm Aluminium Rail System Connector (pack of 100).
Guide Price
470mm Aluminium Rail System Connector (pack of 100).
Guide Price: £163.72 (£196.46 inc VAT)
- Product Code: A1-2927
- Delivery Time: 1 - 2 days
- Brand: Wemico
- Model: 9115
Our ratings on 16-12-2024:
4.8 out of 5

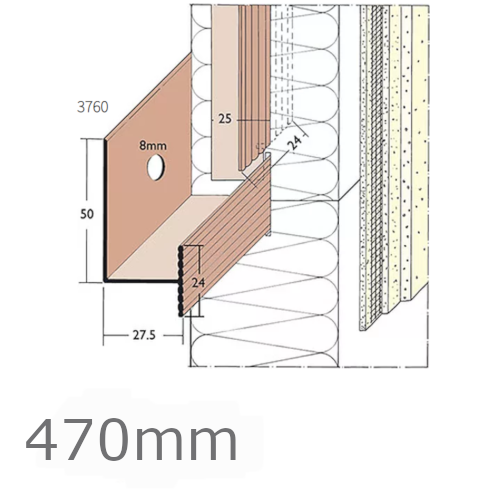

470mm Aluminium Rail System Connector (pack of 100)
Length: 470mm
470mm Aluminium Rail System Connector profile to be used in an External Thermal Insulation Systems with 50mm EPS.
INSTALLATION
- Fix the starter track of the rail system to the wall with dowel screws to the substrate.
- Dowels should be installed at a max. spacing of 30 cm.
- Apply an adhesive dab on the insulation board to cover at least 20% of the surface.
- The insulation board must have a groove for the rail track to go in (as shown in the above photo).
- Push the insulation board into the rail starter track and press it firmly to the wall.
- Align the boards horizontally and vertically.
- Push in the Wemico Aluminium Rail System Connector vertically.
- Push the intermediate rail system track into the installed boards horizontally.
- Fix the intermediate track with dowel screws.
- Continue to install insulation boards upwards.
