37.5mm Isocheck Isoliner Thermal Laminate Board - (25mm PIR bonded to 12.5mm Gyproc SoundBloc) - 2400mm x 1200mm

37.5mm Isocheck Isoliner Thermal Laminate Board - (25mm PIR bonded to 12.5mm Gyproc SoundBloc) - 2400mm x 1200mm
37.5mm Isocheck Isoliner Thermal Laminate Board - (25mm PIR bonded to 12.5mm Gyproc SoundBloc) - 2400mm x 1200mm
37.5mm Isocheck Isoliner Thermal Laminate Board - (25mm PIR bonded to 12.5mm Gyproc SoundBloc) - 2400mm x 1200mm
37.5mm Isocheck Isoliner Thermal Laminate Board - (25mm PIR bonded to 12.5mm Gyproc SoundBloc) - 2400mm x 1200mm
37.5mm Isocheck Isoliner Thermal Laminate Board - (25mm PIR bonded to 12.5mm Gyproc SoundBloc) - 2400mm x 1200mm
37.5mm Isocheck Isoliner Thermal Laminate Board - (25mm PIR bonded to 12.5mm Gyproc SoundBloc) - 2400mm x 1200mm
37.5mm Isocheck Isoliner Thermal Laminate Board - (25mm PIR bonded to 12.5mm Gyproc SoundBloc) - 2400mm x 1200mm
37.5mm Isocheck Isoliner Thermal Laminate Board - (25mm PIR bonded to 12.5mm Gyproc SoundBloc) - 2400mm x 1200mm
37.5mm Isocheck Isoliner Thermal Laminate Board - (25mm PIR bonded to 12.5mm Gyproc SoundBloc) - 2400mm x 1200mm
  • Product Code: A1-5222
  • Delivery Time: 3 - 5 days
  • Brand: Isomass
  • (Tech. support: 08458383389)
  • Model: 2400mm x 1200mm - 2.88m2
  • Weight: 27.00kg
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Show Other thicknesses

37.5mm Isocheck Isoliner Thermal Laminate Board - (25mm PIR + 12.5mm Gyproc SoundBloc) - 2400mm x 1200mm

Thickness: 37.5mm
Width: 1200mm
Length: 2400mm
Weight/m2: 9.38kg
Weight: 27kg

37.5mm Isocheck Isoliner Thermal Laminate Board comprise a 25mm rigid PIR foam insulation board bonded to a 12.5mm tapered edge Gyproc SoundBloc. On the reverse face, the insulation has a multi-layer kraft paper and aluminium facing. This board can be used to line walls and ceilings. It can be fixed to the surface by dot and dab method and by mechanical fastening.

CHARACTERISTICS
  • Easy to handle and install,
  • Suitable for both direct bonding (dot and dab) and mechanical fastening,
  • Reduces airborne sound transmission,
  • High thermal insulation core, 0.022W/mK,
  • Provides thermal insulation and a ready-to-finish internal lining in one product,
  • Zero ozone depletion potential (ODP) and low global warming potential (GWP).
APPLICATION

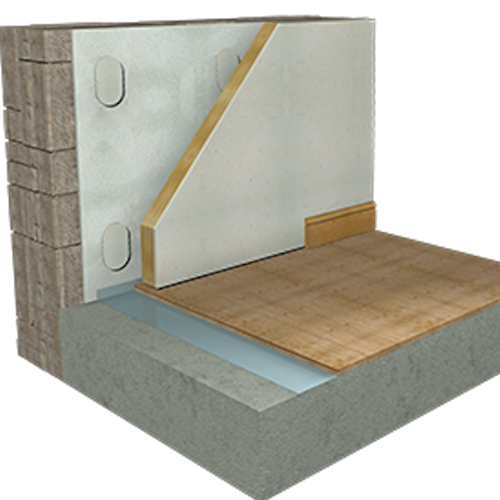

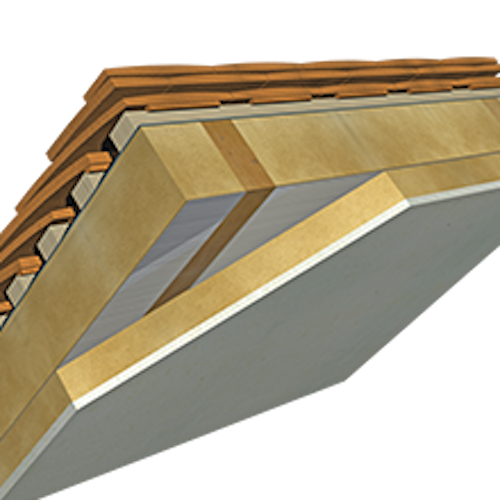

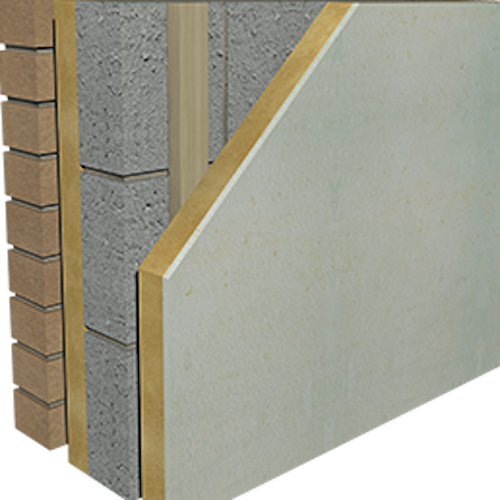

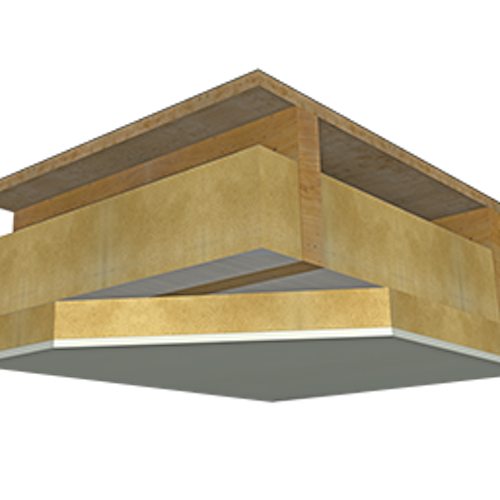

  • Can be used to line walls, and ceilings of pitched roofs and  flat roofs.

CERTIFICATION
  • Manufactured to ISO 14001:2004.

Brand: Isomass Model: 8/16 - 10mm - 4m Free Delivery
Delivery Time: 1 - 2 days
10mm Isocheck Expandastrip 8/16 is a permanently elastic open cell Polyurethane foam, used as a seal in joints between pre-cast units, sealing around doors and window frames, or between corrugated roofing panels, roof structures and roof lights ventilation and air conditioning ductwork. It is impreg..
Brand: Isomass Model: 6/12 - 30mm - 4m Free Delivery
Delivery Time: 1 - 2 days
30mm Isocheck Expandastrip 6/12 is a permanently elastic open cell Polyurethane foam, used as a seal in joints between pre-cast units, sealing around doors and window frames, or between corrugated roofing panels, roof structures and roof lights ventilation and air conditioning ductwork. It is impreg..
Brand: Isomass Model: 50mm - 17mm
Delivery Time: 2 - 3 working days
50mm Isocheck Isolation Washers used to isolate and separate mechanical fixings from the surrounding structure and reduce the transfer of noise and vibration.Diameter A = 50mmDiameter screw B = 17mm..
Brand: Isomass Model: 2400mm x 600mm - 1.44m2
Delivery Time: 3 - 5 days
18mm Isocheck 18C is an overlay platform system, designed for reducing sound transmission, including impact sound transmission and improving acoustic performance of concrete floors. Isocheck 18C is used new build, refurbishment and conversions of concrete floors, able to meet the requirements o..
Brand: Isomass Model: 45mm x 50mm
Delivery Time: 3 - 5 days
45mm x 50mm Econocheck Shallow Batten 50 is part of a suspended concrete floor system, designed for reducing sound transmission and improving acoustic performance of level concrete floors. Isocheck Shallow Batten consists of a layer of 15mm ACF (Acoustic Chip Foam) bonded to a FSC-cer..
15mm Isocheck 15T Timber Floor Acoustic Overlay Board - 1200mm x 600mm 15mm Isocheck 15T Timber Floor Acoustic Overlay Board - 1200mm x 600mm
Guide Price
Brand: Isomass Model: 1200x600mm - 0.72m2
Delivery Time: 3 - 5 days
15mm Isocheck 15T is an overlay platform system bonded direct to floorboards, designed for reducing sound transmission and improving acoustic performance of traditional timber joisted floors. Isocheck 15T is used in new build, refurbishment and conversion applications, able to also reduce impac..
Guide Price: £20.12
£24.14 inc VAT
