27.5mm JCW Acoustic Silent Board - Acoustic Wall Liner
Guide Price
27.5mm JCW Acoustic Silent Board - Acoustic Wall Liner
Guide Price: £57.27 (£68.72 inc VAT)
Price per m2: £39.77/m2 (£47.73 inc VAT)
To add to cart change quantity to minimum of 48. If you need less, ask for a price or add to a quote list.
96 or more £52.57 (£63.08 inc VAT)
144 or more £50.51 (£60.61 inc VAT)
192 or more £48.43 (£58.12 inc VAT)
- Product Code: A1-1998
- Delivery Time: 2 - 3 working days
- Brand: JCW (Tech. support: 08453402858)
- Model: 1200x1200mm - 1.44m2
- Weight: 24.70kg
Our ratings on 16-12-2024:
4.8 out of 5
27.5mm JCW Acoustic Silent Board - Acoustic Wall Liner
Thickness: 27.5mm
Length: 1200mm
Board Coverage: 1.44m2
Density: 624kg/m3
Weight/m2: 17.15kg
Weight: 24.7kg
Airbourne sound insulation: 45dB

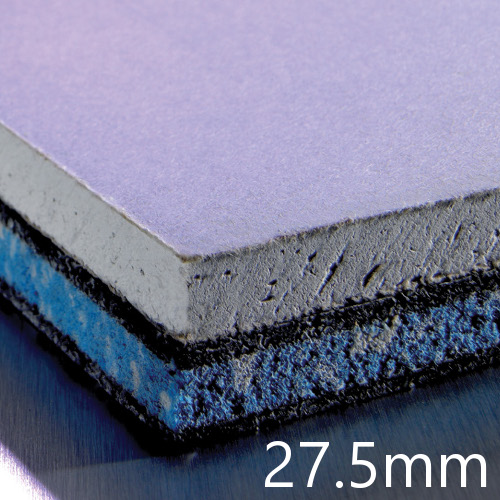

27.5mm JCW Silent Board is an acoustic wall liner manufactured by laminating a 15mm acoustic resilient layer to a 12.5mm layer of acoustic grade plasterboard to drastically reduce sound transmission. It can be applied to either masonry or stud walls and is also suitable to reduce flanking noise up and down walls.
CHARACTERISTICS
- Easy as a quick to install,
- Solution directly onto walls,
- Only 27.5mm its half the thickness of other products,
- Simple to apply to lightweight wall structures or existing plasterboard so theres no studwork required,
- Ensures little compromise on living space without compromising high performance,
- Compliant with Part E building regulations,
- Could be used as a remedial solution for sound test failures,
- Fire retardant,
- 100% of the material has been recycled,
- Flexible, once installed the plasterboard surface is ready for any decorative finish.
APPLICATION
- New build
- Refurbishments
- Domestic upgrade
- On masonry or stud walls
INSTALLATION
- All skirting and coving is to be removed.
- Walls should be flat and/or prepared to accept the JCW Silent Boards.
- Start fitting from either right hand or left hand corner. Plan the bottom row to allow for cuts and staggered joints on all of the rows above.
- JCW Silent Boards must be isolated from the surrounding floor, ceiling and walls. Use JCW Rubber Isolation Strips between the JCW Silent Boards and the surrounding surfaces.
- Any minor gaps can be filled with JCW Acoustic Sealant.
- Alternatively, use 5mm spacers between the JCW Silent Boards and surrounding surfaces, then once the wall is completed, remove the spacers and fully the space with JCW Acoustic Sealant.
- JCW Silent Boards are mechanically fixed to the wall using 12 fixings per board; solid brick or block walls use tap in screw frame fixings. On Stud walls use suitable self-countersinking screws.
- Do not overtighten the screw fixings,
- Once the first JCW Silient Board is fitted in position, continue along the bottom row filling any gaps between the boards with JCW Acoustic Sealant.
- JCW Silent Boards can be plaster skimmed.
CERTIFICATION
JCW Acoustic Silent Board has been independently tested in a UK Verified independent UKAS accredited laboratory.
JCW Silent-Board.pdf
