215mm Ancon Teplo-R Wall Tie - Remedial Wall Tie - for 75mm Cavity
215mm Ancon Teplo-R Wall Tie - Remedial Wall Tie - for 75mm Cavity
Price: £2.58 (£3.10 inc VAT)
- Product Code: A1-5390
- Delivery Time: 2 - 3 working days
- Brand: Ancon (Tech. support: : +44(0)1142381238)
- Model: 215mm
Our ratings on 16-12-2024:
4.8 out of 5
This product has a minimum quantity of 49. If you need less - request a quote.
Show other sizes
215mm Ancon Teplo-R Wall Tie - Remedial Wall Tie - for 75mm Cavity
Length: 215mm
Pack Quantity: 1
Cavity width: 75mm

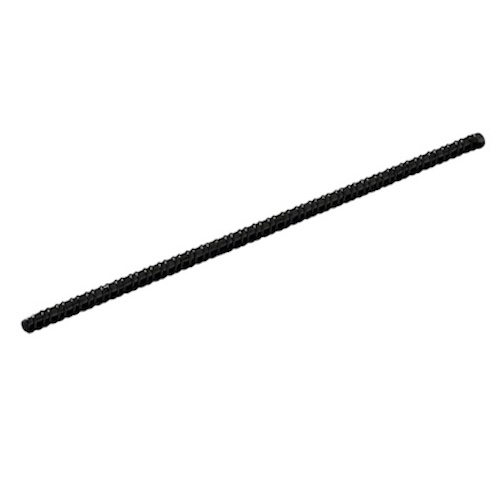

215mm Ancon Teplo-R Wall Tie is a remedial wall tie is an ultra-low thermal conductivity wall tie manufactured from basalt fibres set in a resin matrix. It minimises heat loss across an insulated cavity, improving the energy efficiency of a masonry cavity wall. It is a plain-ended basalt fibre wall tie that can be resin-fixed in remedial and retrofit applications. This tie has a thermal conductivity of only 0.7 W/mK. Requires Ø10mm hole. A stainless steel sieve may be used to retain resin and is particularly useful in perforated brick or hollow blockwork. A 12mm hole is required to fit the sieve.
CHARACTERISTICS
- Manufactured from basalt fibres set in a resin matrix,
- 7mm diameter,
- Suitable for75 mm cavity.
Brand: Ancon
Model: SD25/275
Delivery Time: 2 - 5 working days
Ancon SD25/275 Channel Wall Ties with a safety ended v drip for 210-234mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. They are placed in the channel by rotating through 90° and can be easily moved to the required position to be built into the masonry bed joint..
Brand: Ancon
Model: 100mm - bag of 100
Delivery Time: 2 - 5 working days
Ancon HTSS-100-2PT-W Screws are used to fix an outer leaf of brickwork through any kind of insulation to a steel frame structure. These screws feature a shaped drill tip of hardened steel that allows installation without pre-drilling. Ancon HTSS-100-2PT-W high thread screws accommodat..
Brand: Ancon
Model: 115mm - bag of 100
Delivery Time: 2 - 5 working days
Ancon HTSS-115-2PT-W Screws are used to fix an outer leaf of brickwork through any kind of insulation to a steel frame structure. These screws feature a shaped drill tip of hardened steel that allows installation without pre-drilling. Ancon HTSS-115-2PT-W high thread screws accommodat..
Brand: Ancon
Model: CFS130
Delivery Time: 2 - 5 working days
Ancon CFS130 Concrete Fixing Screws is used to fix an outer leaf of brickwork through any kind of insulation to a concrete wall. These zinc plated carbon steel screws should be used in combination with Ancon Compression Sleeves in the same length as the insulation thickness being used..
Brand: Ancon
Model: 225mm
Delivery Time: 2 - 3 working days
225mm Ancon Staifix RT2 Wall Tie is a low conductivity stainless steel general purpose wall tie for use in domestic houses and small commercial buildings up to 15 metres in height. Wall ties should be pressed down in fresh mortar. They should be surrounded by mortar and they should be inst..
£6.51
£7.81 inc VAT
Brand: Ancon
Model: 375mm
Delivery Time: 3 - 5 days
375mm Ancon Teplo-BF-2 Wall Tie is a smart black general purpose composite wall tie manufactured from pultruded basalt fibres with a thermal conductivity of 0.7 W/mK, which helps to prevent heat escape from the building. The Teplo-BF-2 has specialised moulded safety ends which offer improved bu..
Guide Price: £3.47
£4.16 inc VAT
