2.5m PVC Rail System Support Track (pack of 25).
Guide Price
2.5m PVC Rail System Support Track (pack of 25).
Guide Price: £89.27 (£107.12 inc VAT)
- Product Code: A1-2930
- Delivery Time: 1 - 2 days
- Brand: Wemico
- Model and Size: 3760
Our ratings on 16-12-2024:
4.8 out of 5
2.5m PVC Rail System Support Track (pack of 25).
Length: 2500mm
Pack Quantity: 25

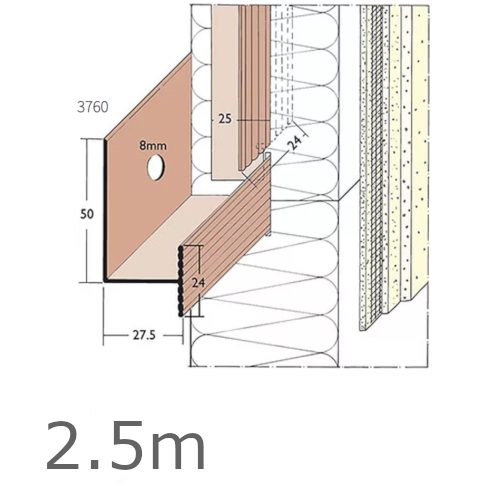

2.5m PVC Rail System Support Track profile to be used in an External Thermal Insulation Systems with EPS. Can be used with other stiff insulation boards.
INSTALLATION
- Fix the starter track of the rail system to the wall with dowel screws to the substrate.
- Dowels should be installed at a max. spacing of 30 cm.
- Apply an adhesive dab on the insulation board to cover at least 20% of the surface.

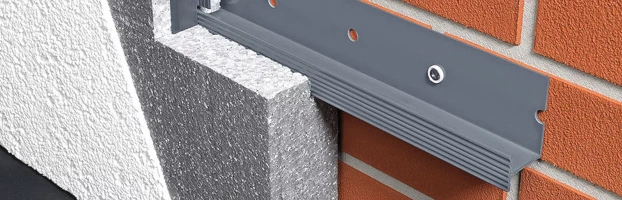

- The insulation board must have a groove for the rail track to go in (as shown in the above photo).
- Push the insulation board into the rail starter track and press it firmly to the wall.
- Align the boards horizontally and vertically.
- Push in the Wemico Rail System Connector vertically.
- Push the intermediate rail system track into the installed boards horizontally.
- Fix the intermediate track with dowel screws.
- Continue to install insulation boards upwards.
Guide Price
Brand: Wemico
Model and Size: WEC 771
Delivery Time: 1 - 2 days
100mm WEC 771 Verge Trim Profile is designed for use in situations where sealing the rear of the profile is possible. This profile also has an increased drip section to improve visual appearance and a large front face to help prevent the water blowing up and soaking the insulation.Manufactured ..
Guide Price: £24.82
£29.78 inc VAT
Brand: Wemico
Model and Size: 62mm x 6mm x 6mm - length of 2.5m
Delivery Time: 1 - 2 days
62mm x 6mm x 6mm Aluminium Black Finish Bird Beak Facade Joint Profile - length of 2.5m - pack of 20
62mm x 6mm x 6mm Aluminium Black Finish Bird Beak Facade Joint Profile length of 2.5m. This joint profile subtly depicts the joint whilst effectively closing it. The beading along the profile also centres and guides the facade cladding joint. If used horizontally and if no horizontal subst..
Guide Price
Brand: Wemico
Model and Size: WEC 732 - 120mm
Delivery Time: 1 - 2 days
The WEC 732 profile has an increased drip section to improve visual appearance and a large front face to help prevent water blowing up and soaking the insulation. The new design of drip also allows the end caps to be riveted into position. Manufactured from 1.2mm pre-coated white aluminium, in lengt..
Guide Price: £30.97
£37.16 inc VAT
Guide Price
Brand: Wemico
Model and Size: 3799
Delivery Time: 1 - 2 days
80x120mm PVC Corner profile with alkali resistant glass fibre mesh wings, which allows it to be cut to the required length and reduces waste. Can be folded to any angle. 2.5m length...
Guide Price: £274.64
£329.57 inc VAT
Guide Price
Brand: Wemico
Model and Size: WE85N
Delivery Time: 1 - 2 days
50mm Heavy duty Stop profile designed for thermal insulation systems with render. Profile is made from powder coated galvanised steel with PVC nosing which will provide additional protection against abrasion and corrosion. Nosing available in a range of colours (colour can be specified during checko..
Guide Price: £12.40
£14.88 inc VAT
Brand: Wemico
Model and Size: 93321
Delivery Time: 1 - 2 days
210mm Aluminium Stop Track Profile for thermal insulation systems with render, designed for 100mm thickness of insulating board. These profiles can be powder coated to any standard RAL colour...
