170mm WEC 771 Verge Trim Profile - 2.5m length

170mm WEC 771 Verge Trim Profile - 2.5m length
Guide Price
170mm WEC 771 Verge Trim Profile - 2.5m length
Guide Price: £29.89 (£35.87 inc VAT)
  • Product Code: A1-2812
  • Delivery Time: 1 - 2 days
  • Brand: Wemico
  • Model: WEC 771 - 170mm
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Show other widths

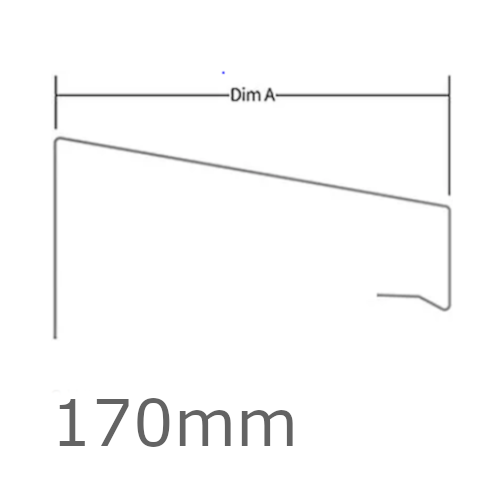

170mm WEC 771 Verge Trim Profile - 2.5m length

Thickness: 1.2mm
Length: 2500mm
Width: 170mm

170mm WEC 771 Verge Trim Profile is designed for use in situations where sealing the rear of the profile is possible. This profile also has an increased drip section to improve visual appearance and a large front face to help prevent the water blowing up and soaking the insulation.

Manufactured in 1.2mm pre-coated white aluminium in 2500mm long lengths. These profiles can also be powder coated to any standard RAL colour and manufactured in lengths up to 4000mm.

The profile is extended with an overtrim, where the profile is inserted to under the overtrim. The 3rd element of the system is the Apex profile, to which the overtrim profile can be inserted. This a part of the 3 element system designed to improve the weather tightness of the system and reduce the use of sealants and reduce future maintenance issues.
