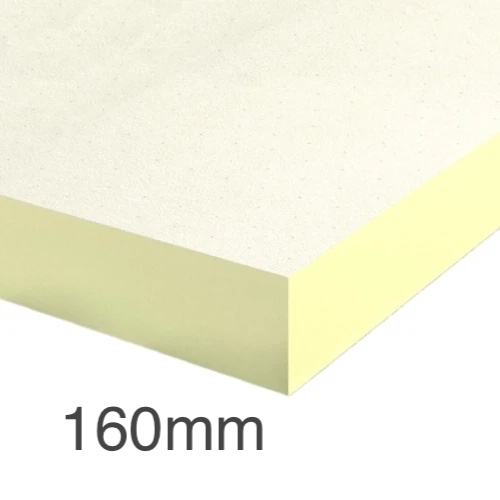

160mm Unilin FR/MG Flat Roof Board - pack of 3
Guide Price
160mm Unilin FR/MG Flat Roof Board - pack of 3
Guide Price: £167.09 (£200.51 inc VAT)
Price per m2: £38.68/m2 (£46.41 inc VAT)
- Product Code: A1-5288
- Delivery Time: 3 - 5 days
- Brand: Unilin (prev. Xtratherm) (Tech. support: 03712221055)
- Model: 1200mm x 1200mm - 4.32m2
- Weight: 20.74kg
Our ratings on 08-11-2024:
4.8 out of 5
160mm Unilin FR/MG Flat Roof Board - pack of 3
Length: 1200mm
Width: 1200mm
Thickness: 160mm
Pack Quantity: 3
Board Coverage: 1.44m2
Pack Coverage: 4.32m2
Density: 30kg/m3
Weight/m2: 4.8kg
Weight: 20.74kg
Thermal Conductivity: 0.024W/mK
R-Value: 6.67m2K/W
Compressive Strength: 150kPa
160mm Unilin FR/MG is a high performance PIR core with mineral coated glass facers suitable for use below single ply waterproofing systems and partially bonded built-up felt. It is compatible with adhesively bonded single ply roofing membranes laid on mechanically fixed or adhered boards.
APPLICATION
- Rooftop decks subject to maintenance traffic,
- Below most single-ply fully adhered and mechanically fixed roof membrane systems or loose laid ballasted roofing systems.
CHARACTERISTICS
- High Thermal Performance,
- Both sides coated with mineral coated glass facers,
- Suitable for full bonding with approved adhesive systems,
- Compatible with adhesively bonded single-ply roofing membranes laid on mechanically fixed boards.
CERTIFICATION
BBA-Cert-FR-MG.pdf
