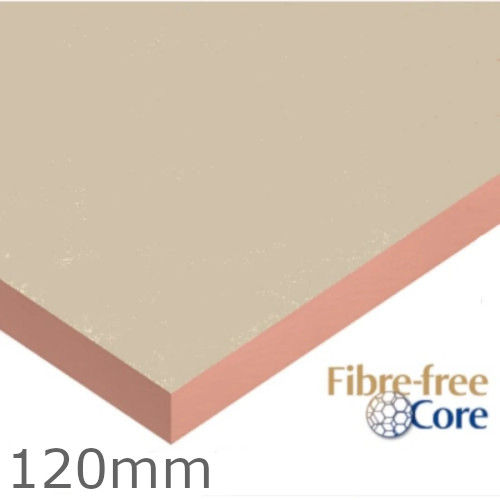

120mm (2x60mm Machine Bonded Together) Kooltherm K5 External Wall Insulation Board Kingspan - 1200mm x 600mm

120mm (2x60mm Machine Bonded Together) Kooltherm K5 External Wall Insulation Board Kingspan - 1200mm x 600mm
120mm (2x60mm Machine Bonded Together) Kooltherm K5 External Wall Insulation Board Kingspan - 1200mm x 600mm
  • Product Code: A1-4995
  • Delivery Time: 3 - 5 days
  • Model and Size: 1200x600 - 0.72m2
  • Weight: 3.00kg
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

120mm (2x60mm Machine Bonded Together) Kooltherm K5 External Wall Insulation Board Kingspan - 1200mm x 600mm

Length: 1200mm
Width: 600mm
Thickness: 120mm
Board Coverage: 0.72m2
Density: 35kg/m3
Weight/m2: 4.2kg
Weight: 3kg
Thermal Conductivity: 0.021W/mK
R-Value: 5.7m2K/W
Compressive Strength: 120kPa
Fire Rating (Reaction to Fire): C(Class 1)

120mm Kingspan Kooltherm K5 External Wall Insulation Board is the external wall insulation comprising a premium performance rigid thermoset phenolic insulation core faced on both sides with a glass tissue based facing auto-adhesively bonded to the insulation core during manufacture.

CHARACTERISTICS
  • Premium performance insulation board,
  • Suitable for use behind traditional and lightweight polymer modified renders and dry cladding systems,
  • Unaffected by air infiltration,
  • Resistant to the passage of water vapour,
  • Easy to handle and install,
  • Ideal for new build and refurbishment,
  • fire rating Euroclass: C-s2,d0,
  • Non-deleterious material,
APPLICATION
External wall insulation:
  • Solid brick wall
  • Solid block wall
  • Cavity block wall
  • Cavity brick wall
  • Cavity dense block wall
CERTIFICATES
Kingspan Kooltherm K5 External Wall Board is manufactured to the highest standards under a management system certified to:
  • BS / I.S. EN ISO 9001: 2015 (Quality Management Systems. Requirements),
  • BS / I.S. EN ISO 14001: 2015 (Environmental Management Systems. Requirements),
  • ISO 37301: 2021 (Compliance management systems),
  • ISO 45001: 2018 (Occupational Health and Safety Management Systems),
  • ISO 50001: 2018 (Energy Management Systems)
