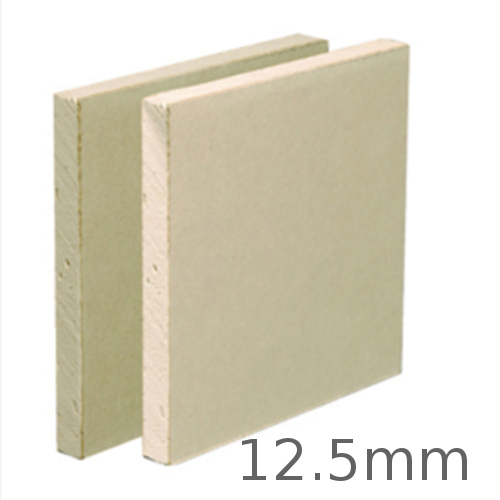

12.5mm Gyproc Wallboard TEN 1200x2400mm

12.5mm Gyproc Wallboard TEN is specifically engineered have mass of 10kg/m2 for internal and separating constructions in all residential projects, both new-build and refurbishment. Gyproc WallBoard TEN consists of an aerated gypsum core encased in, and firmly bonded to, strong paper liners. Gyproc WallBoard TEN plasterboard is suitable for drylining internal surfaces. This plasterboard is certified to BES 6001 achieving a rating of ‘Very Good’. Plasterboard linings provide good fire protection owing to the unique behaviour of the non-combustible gypsum core when subjected to high temperatures. Linings: ivory face paper and brown reverse side paper. Tapered edge.

• Non-combustible,
• Superior acoustic performance,
• High moisture resistance,
• High density,
• Easy to handle and work with,
• Board printed with screw centre markings,
• These boards have a controlled density, with a face to which suitable gypsum plasters or decoration may be applied.


• May be cut using a plasterboard saw or by scoring with a sharp knife and snapping the board over a straight edge.
• Holes for switch or socket boxes should be cut out before the boards are fixed.
• Power tools should only be used by people who have been instructed and trained to use them safely.
• Fix boards with decorative side out to receive joint treatment or a skim plaster finish.
• Lightly butt boards together. Never force boards into position.
• Install fixings not closer than 13mm from cut edges and 10mm from bound edges.
• Position cut edges to internal angles whenever possible, removing paper burrs with fine sandpaper.
• Stagger horizontal and vertical board joints between layers by a minimum of 600mm.
• Locate boards to the centre line of framing where this supports board edges or ends.

• The face (ivory side) can be plastered with either Thistle Board Finish or Thistle Multi-Finish.
• There should be the minimum of delay between completion of the lining and the commencing of plastering.

• Complies with EN 520 – Type D,
• EN520: 2004, A1:2009 Gypsum Plasterboards, definitions, requirements and test methods,

• BS 476: Part 6: 1989 Method of test for fire propagation for products,
• BS 476: Part 7: 1997 Surface spread of flame tests for materials,
• EN 13501-1: 2007 + A1: 2009
