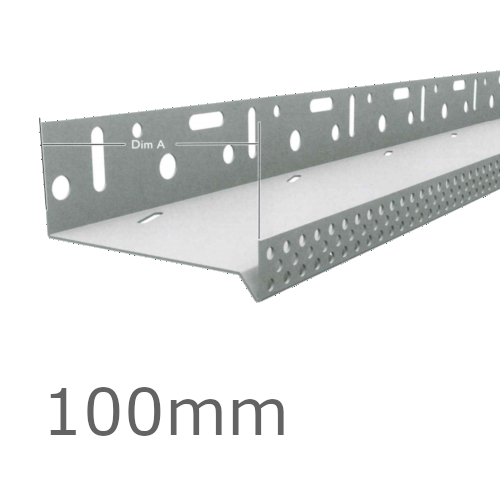

100mm Aluminium Vented Base Track - for timber construction.

100mm Aluminium Vented Base Track - for timber construction.
Guide Price
100mm Aluminium Vented Base Track - for timber construction.
Guide Price: £15.41 (£18.49 inc VAT)
  • Product Code: A1-4263
  • Delivery Time: 1 - 2 days
  • Brand: Wemico
  • Model: 90910ST
Our ratings on 16-12-2024:
Google My Business Reviews
4.8 out of 5
Show other widths

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

100mm Aluminium Vented Base Track - for timber construction.

Thickness: 0.8mm
Width: 100mm
Length: 2500mm

100mm box shaped Aluminium Vented base profile for external thermal insulation board, created to match the new regulations that demand different air flow rates within cavities of steel frame and timber frame structures. Connectors and render clips are also available to suit this product.



Note: Please choose for timber frame or steel frame structures.

Ventilation rate per meter length for timber frame is 735.07mm2.

Ventilation rate per meter length for steel frame is 143.14mm2.



Brand: Wemico Model: C2
Delivery Time: 1 - 2 days
2mm Render Only PVC Corner Bead for external insulation systems. Drip bead and movement bead for render are also available to suit this product.Available colours: White..
£60.97
£73.16 inc VAT
Brand: Wemico Model: 9400
Delivery Time: 1 - 2 days
Aluminium Facade Corner Profile Without Covered Cutting Edges - Profile 9400 length of 2.5m. Corner profiles cover the cutting edges of the facade boards and form a clean, precise edge. Vertical corner profiles must be fastened at one fixed point at the top. If conditions require multiple faste..
Brand: Wemico Model: 37502
Delivery Time: 1 - 2 days
14mm PVC base profile for use between DPC and insulation systems. Available in a range of widths and render thicknesses. Can also be used in conjunction with a PVC angle section as a 2 part  base starter track. Please contact us for details...
£282.42
£338.90 inc VAT
230mm Aluminium Brickslip Base Profile - 2.5m length
Guide Price
Brand: Wemico Model: BrickSlip230
Delivery Time: 1 - 2 days
230mm Wemico aluminium brickslip profile for use in Insulation systems finished with a brick slip detail. These profiles can be powder coated to any standard RAL colour...
Guide Price: £36.71
£44.05 inc VAT
70mm Aluminium Window Sill Extensions WEC 761 (with full end caps - pair) - 2.5m Length 70mm Aluminium Window Sill Extensions WEC 761 (with full end caps - pair) - 2.5m Length
Guide Price
Brand: Wemico Model: WEC761/70 - 70mm
Delivery Time: 1 - 2 days
70mm Window Sill Extension WEC 761 is suitable for most conditions requiring the weathering of External Wall Insulation Systems and Rendering. Aluminium White Coated with peel-off low tack film to protect the section during transportation and fixing on-site. Jointing pieces to suit any section ..
Guide Price: £17.91
£21.49 inc VAT
230mm Eaves Flashing, Osill and Window Sill Extensions (with full end caps-pair) - 2.5m Length. 230mm Eaves Flashing, Osill and Window Sill Extensions (with full end caps-pair) - 2.5m Length.
Guide Price
Brand: Wemico Model: WEC721/230
Delivery Time: 1 - 2 days
230mm Eaves Flashing and Window Sill Extension is suitable for most conditions requiring the weathering of External Wall Insulation Systems and Rendering. Aluminium White Coated with peel-off low tack film to protect the section during transportation and fixing on-site. Jointing ..
Guide Price: £37.86
£45.43 inc VAT
This product is listed in the following categories and systems (click to show).
